Office Tripod Turnstile: The Buyer's Guide for Corporate Facilities
TL;DR: An office tripod turnstile provides reliable one-at-a-time entry control for corporate buildings. It integrates with RFID, QR code, and biometric credentials, fits most lobby layouts, and costs significantly less than speed gates or flap barriers. For most offices, a fully automatic brushless motor model delivers the best balance of quiet performance, professional aesthetics, and budget.
Managing employee and visitor flow at a corporate entrance is harder than it looks. Manual checks slow lines, policies drift by shift, and the lobby makes the first impression.
An office tripod turnstile solves all three problems with a single, consistent checkpoint. This guide helps you confirm whether a tripod turnstile fits your office, understand what features actually matter, compare it to other gate types, and choose the right model for your specific lobby.
Is a Tripod Turnstile Right for Your Office?
Yes, for most offices. Tripod turnstiles are among the most widely deployed access control gates in corporate buildings globally. They control entry one person at a time, work with standard credential systems, and fit most lobby layouts at a fraction of the cost of speed gates or flap barriers.
The commercial application segment accounts for nearly 32% of global turnstile revenue, making offices one of the core deployment environments for this product category.
Key advantages for office use:
- Compact footprint (typically 260–280mm wide per lane)
- Physical anti-tailgating on every single pass
- Compatible with RFID cards, QR codes, fingerprint readers, and face recognition
- Drop-arm fail-safe for fire safety and emergency evacuation compliance
- Lower upfront cost than flap barriers or speed gates
One honest limitation: semi-automatic models process roughly 20–25 persons per minute per lane. Fully automatic models reach 35–50 persons per minute. For most offices, either is sufficient.
Explore the full tripod turnstile for office building range for an overview of corporate-specific configurations.
How Many Lanes Does Your Office Actually Need?
Divide your peak arrival count by your lane's throughput per minute, then scale by the length of your peak window.
Here is a practical example:
- 200 employees arrive between 8:45 and 9:15 (a 30-minute window)
- One automatic lane at 40 ppm handles 1,200 passes in that window
- Result: one lane covers this volume comfortably
For shift-based workplaces where large groups arrive simultaneously, two lanes are a safer choice. Multi-lane setups also help when you need to separate employee and visitor flows.
Single-Lane vs. Multi-Lane
Single-lane installations suit small to mid-size offices with staggered arrivals. Multi-lane deployments make sense for buildings with 300+ peak arrivals, concentrated shift start times, or lobbies that handle mixed visitor types at the same time.
What Features Matter Most in an Office Tripod Turnstile?
Office buyers often compare spec sheets that look nearly identical on paper. These six criteria make the real difference in a corporate environment.
Motor Type and Noise Level
Fully automatic models use a brushless DC motor that opens in under 0.5 seconds and runs quietly. Semi-automatic models use an electromagnet mechanism and reset with a more noticeable click.
For offices adjacent to open-plan work areas or reception desks, the brushless motor version is worth the price difference. Quiet, consistent cycling keeps the lobby professional throughout the day.
Chassis Design and Finish
Modern office tripod turnstiles come in brushed SUS304 stainless steel, which suits most corporate reception areas. Bridge-type chassis provide a longer, more refined silhouette. Vertical-type units take less floor space and work well in narrower corridors.
Choose based on your lobby dimensions, visual aesthetic, and whether an ADA-accessible lane needs to sit alongside the turnstile bank.
Credential Compatibility
The turnstile is the physical gate. What matters is how it connects to your existing credential infrastructure.
Most office models accept input from:
- RFID IC/ID card readers
- QR code and barcode scanners
- Fingerprint modules
- Facial recognition terminals
Confirm compatibility with your current HR system or access control platform before ordering.
Drop-Arm Fail-Safe Function
This feature is non-negotiable for any commercial building installation. When a fire alarm triggers or power fails, the drop-arm mechanism releases automatically to allow free passage. Many jurisdictions require it by law.
Always verify the model you purchase includes a certified drop-arm function.
LED Status Indicators
Green for valid, red for rejected. Simple RGB indicators resolve most gate questions at the device, without staff involvement. In busy lobbies, this noticeably reduces front-desk interruptions.
Unit Dimensions
Typical office tripod turnstiles measure around 1200 × 260–280 × 960–980mm per lane. Confirm clearances before installation, especially in lobbies with narrow corridors or fixed floor finishes that complicate post anchoring.
Office Tripod Turnstile vs. Other Gate Types
Before committing, it helps to see how a tripod turnstile compares to the alternatives. The right gate depends on budget, traffic volume, and lobby aesthetic standards.
| Feature | Tripod Turnstile | Flap Barrier | Speed Gate | Full-Height |
|---|---|---|---|---|
| Typical Cost | $300–$800 | $800–$2,000+ | $1,500–$4,000+ | $700–$1,500 |
| Throughput (ppm) | 20–50 | 40–55 | 40–60 | 10–15 |
| Footprint | Compact | Medium | Medium | Large |
| Noise Level | Low (brushless) | Very low | Very low | Medium |
| Office Aesthetics | Good (modern models) | Excellent | Excellent | Poor |
| ADA / Luggage-Friendly | No | Yes | Yes | No |
| Best Fit | Most offices | Premium lobbies | Tech campuses, banks | High-security only |
For most corporate offices with per-lane budgets under $1,000, a tripod turnstile is the practical choice. Flap barriers and speed gates offer faster throughput and a sleeker profile, but at two to five times the cost. Full-height turnstiles are generally excessive for a standard office environment.

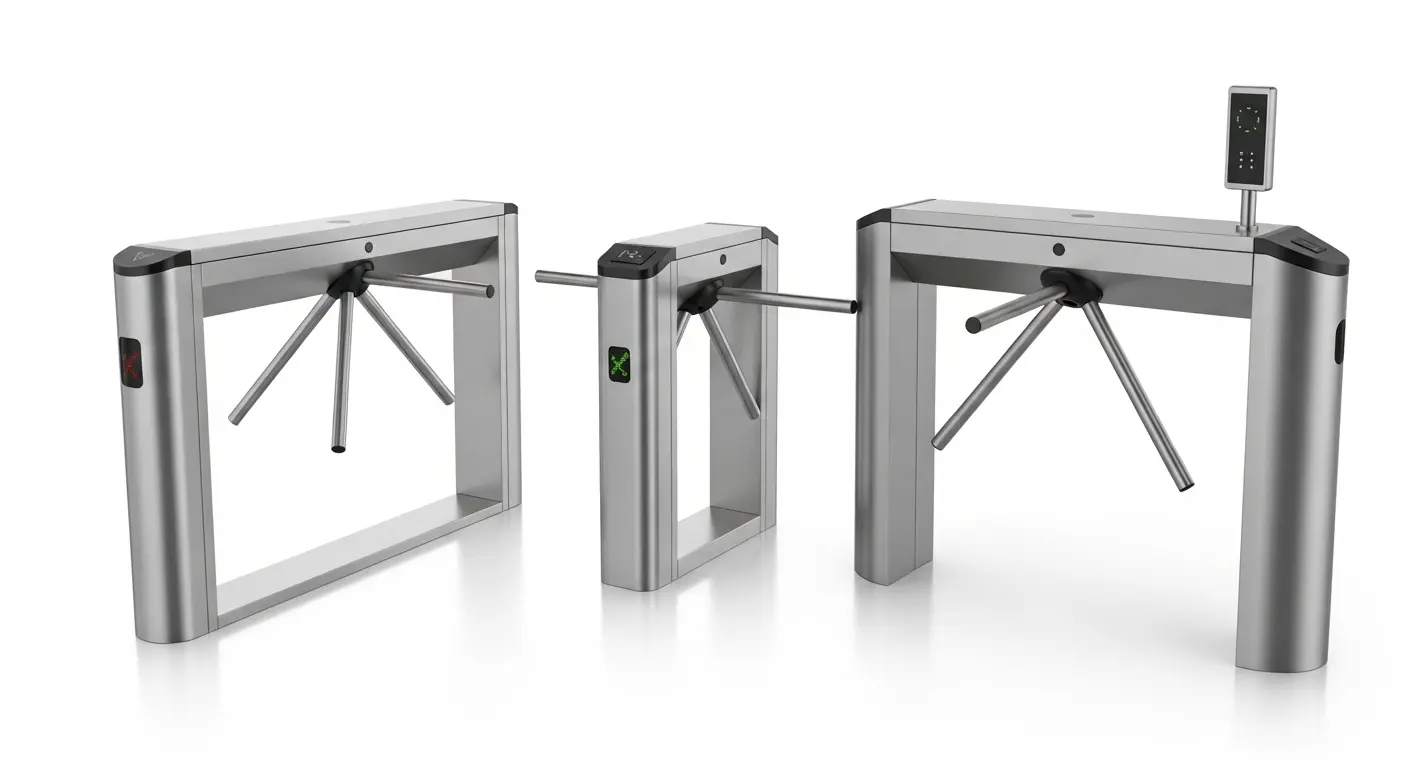

Which Tripod Turnstile Models Work Best in an Office?
The right model depends on your lobby type, credential requirements, and expected service life. Here are four options worth evaluating.
Fully Automatic Tripod Turnstile (Brushless Motor)
Built for modern corporate lobbies where quiet, consistent cycling matters. The brushless DC motor delivers fast, near-silent operation at 35–50 persons per minute. Full specs are available on the full automatic tripod turnstile product page.
RFID-Compatible Tripod Turnstile
Ideal for offices already running RFID badge systems. Integrates cleanly with existing HR and access control platforms via standard Wiegand or RS485 interfaces. Browse RFID tripod turnstile configurations for available reader pairings.
Bridge-Type Tripod Turnstile
A longer chassis profile that reads as more architecturally considered in polished reception areas. The tripod turnstile bridge model suits lobbies where the entrance is a visible design focal point.
Heavy-Duty Tripod Turnstile
For high-footfall buildings or environments where long service life is the priority. The heavy-duty tripod turnstile carries a higher MCBF rating and a more robust mechanism built for sustained daily use.
Turboo holds over 200 patents in access control engineering and carries CE, ISO9001, ROHS, and FCC certifications, which simplifies compliance verification for procurement teams working across international markets.
How Does Office Tripod Turnstile Integration Work?
An office tripod turnstile connects to your access control infrastructure through a standard electrical interface, using Wiegand, RS485, or TCP/IP protocols to communicate with readers, panels, and management software.
In practice, integration follows four steps:
- Select your credential type (card, QR code, biometric, or face recognition)
- Mount the reader module on or alongside the turnstile housing
- Connect the reader output to your access control panel via the correct interface
- Link the panel to your time-and-attendance system or visitor management platform
Most modern models support multiple credential types on the same hardware. You can start with RFID card access today and add facial recognition later, without replacing the gate itself.
For step-by-step physical setup, the turnstile installation guide covers the key requirements before and during installation.
What Does an Office Tripod Turnstile Cost?
Expect to pay $300–$800+ per unit depending on motor type, credential integration, and material grade. Total installed cost is higher once you include cabling, credential hardware, and software.
| Model Type | Typical Unit Price Range |
|---|---|
| Basic Semi-Automatic | $200–$350 |
| Semi-Automatic with Electromagnet | $300–$500 |
| Fully Automatic (Brushless Motor) | $500–$800+ |
| Automatic with Integrated Biometrics | $700–$1,200+ |
Current listings for office building tripod turnstiles on Alibaba offer a useful market reference for unit pricing, though they typically exclude technical support and compliance certifications.
For a two-lane office installation, budget an additional 30–50% above unit cost to cover the full project. Brushless motor models cost more upfront but require less maintenance over a 3–5 year window, often making them the lower total cost option.
Expert Tip: Before contacting a supplier, note four things: your peak arrival window (e.g., "200 staff between 8:45–9:15 AM"), your lobby lane width, your current credential system, and whether you need an ADA-accessible adjacent lane. Suppliers can give a much more precise recommendation when these details are shared upfront, and it avoids multiple back-and-forth exchanges before you get a real answer.
Frequently Asked Questions

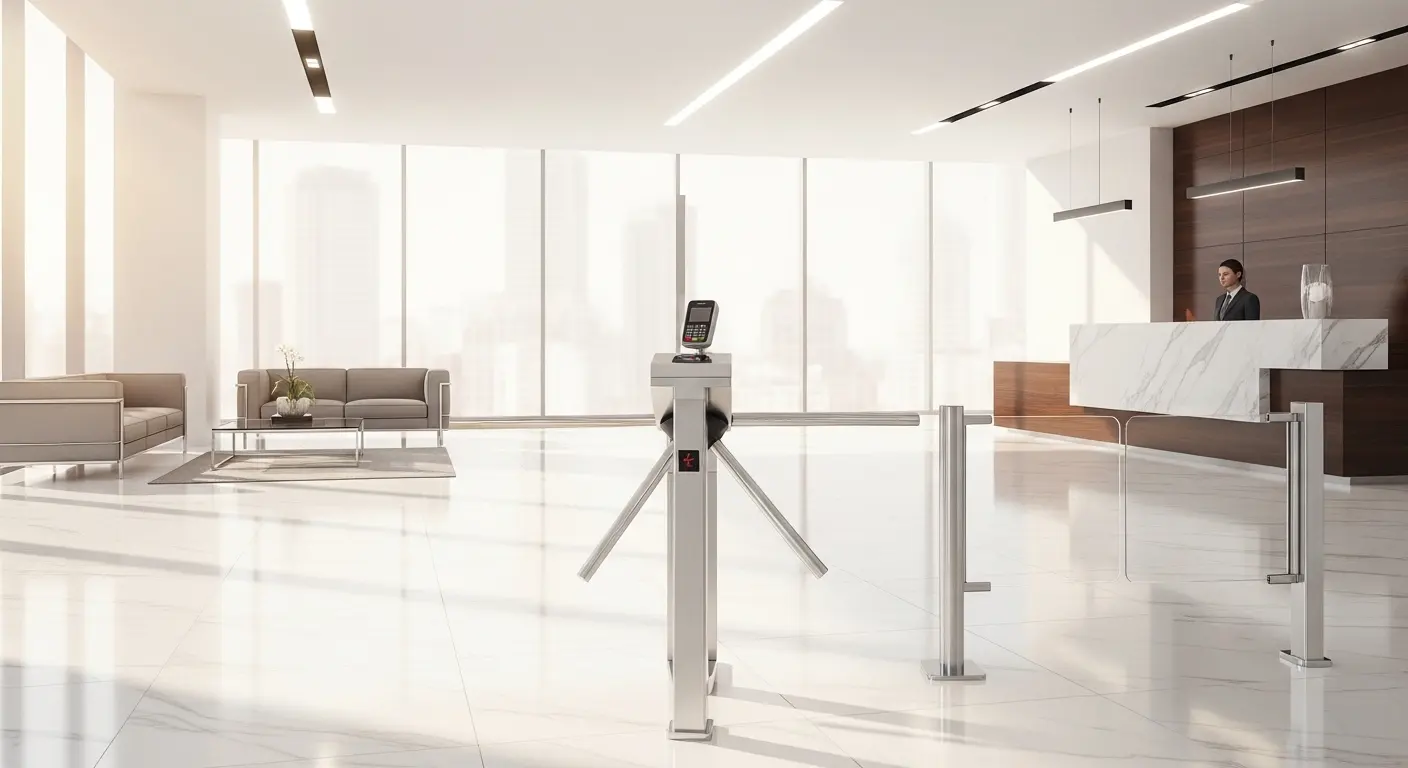

Can a tripod turnstile be used in a corporate office lobby?
Yes. Tripod turnstiles are widely deployed in corporate office buildings globally. Modern brushless-motor models with SUS304 stainless steel finishes operate quietly and look professional in most lobby environments. They support standard credential systems and comply with fire safety requirements when equipped with a drop-arm fail-safe function.
How many people per minute can an office tripod turnstile process?
Semi-automatic models handle approximately 20–25 persons per minute per lane. Fully automatic brushless models reach 35–50 persons per minute. For most small to mid-size offices with staggered arrivals, one automatic lane is sufficient for typical morning peak windows.
What is the difference between a tripod turnstile and a flap barrier for an office?
A flap barrier offers higher throughput (40–55 ppm), quieter operation, and a sleeker profile, but typically costs two to four times more per lane. A tripod turnstile covers most office needs at a lower investment. Budget, traffic volume, and lobby aesthetics should guide the final decision.
What access control systems are compatible with office tripod turnstiles?
Most models integrate with RFID card readers, QR code scanners, fingerprint readers, and facial recognition terminals. They communicate via Wiegand, RS485, or TCP/IP protocols, which are standard across most commercial access control, time-and-attendance, and visitor management platforms.
Do office tripod turnstiles have an emergency evacuation mode?
Yes. Most modern models include a drop-arm fail-safe that automatically releases the barrier during a power failure or fire alarm signal, allowing free passage. This is a legal requirement in many markets. Always confirm the feature is certified and present before purchasing.
How much does an office tripod turnstile cost?
Unit prices range from approximately $300 for basic semi-automatic models to $800+ for fully automatic units with integrated credentials, based on current market data. Total project cost, including installation, cabling, and software, will be higher. Request a direct quote from the manufacturer for site-specific pricing.
What certifications should an office tripod turnstile have?
Look for CE (European safety compliance), ISO9001 (quality management), and ROHS (materials compliance). North American procurement teams should also verify FCC certification. These confirm independent testing and are often required for commercial building compliance across international markets.
Ready to Specify the Right Model?
Every office entrance is different. Turboo's access control team can match your lobby layout, traffic volume, and credential requirements to the right configuration and provide a clear quote.
Browse the full office tripod turnstile range or contact the team directly to discuss your project.
