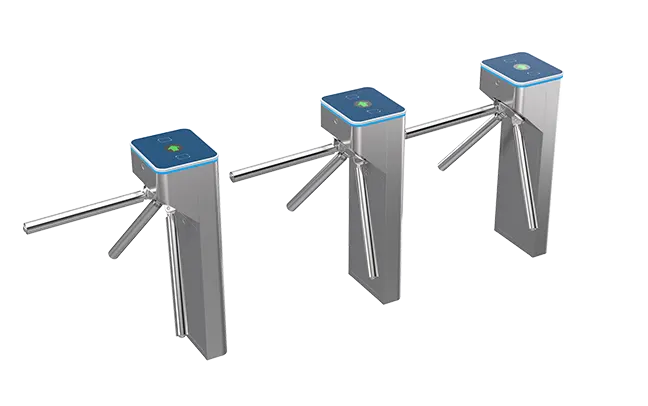

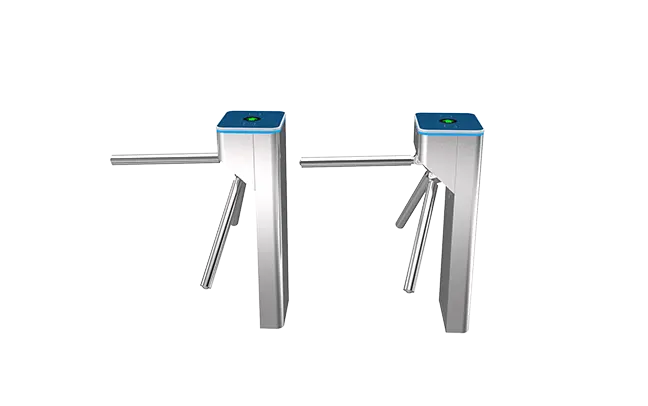

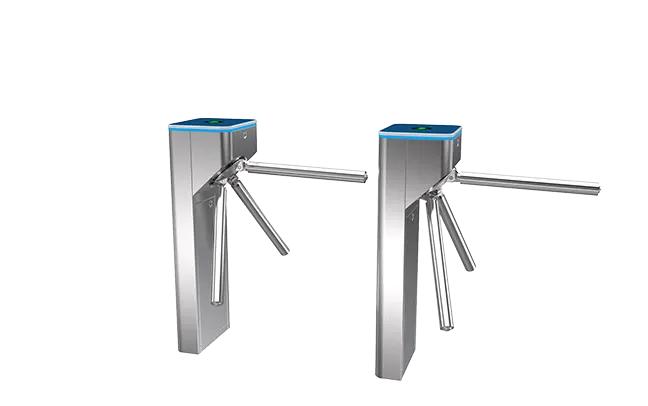

Full Automatic Tripod Turnstile with Blue Tempered Glass Cover LB123
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- Using brushless motor, cooperating with our professional machine core, the function is more powerful.

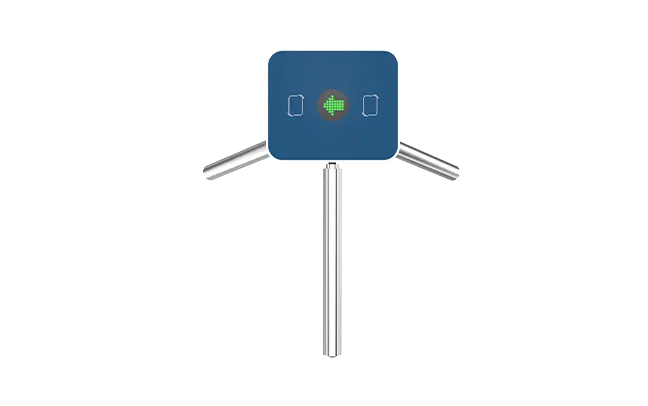

- LED indicator, valid card showing green, illegal card showing red;
- Card can be set "with memory" or "without memory".
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- Compatible with IC, ID card, scanning and face recognition.
- With unified and standard external electrical interface to facilitate system integration.
- Extensible to realize access control, attendance, fees and other functions.
- Can be used outdoors completely, one machine can be used as a lane.

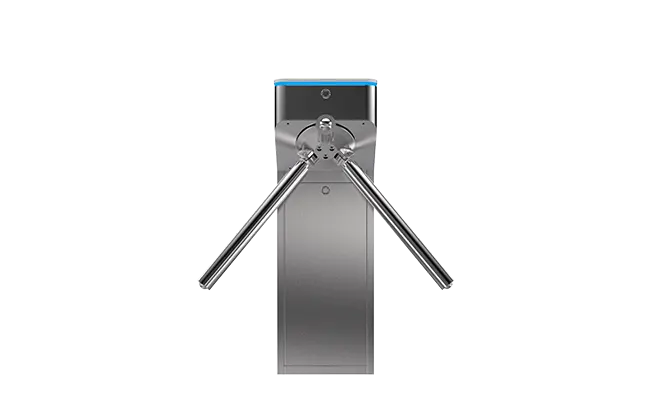

Details
 |
 |

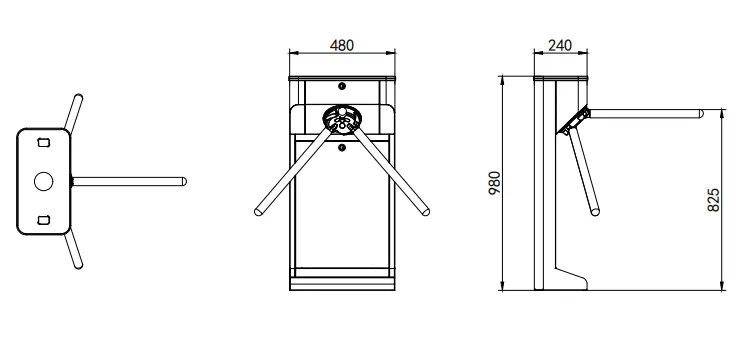

Product size
Parameters
| Size（L*W*H) | 480*240*980mm |
| Pass width | 550mm |
| Weight | 29KG |
| Material | Top tempering glass+ body δ=1.5mm SUS304 |
| Bar Material | SUS304 1.5mm |
| Movement | Semi-auto tripod mechanism with anti-passback |
| Indicator Light | Dynamic indicator light+ RGB light |
| Control board | Standard tripod turnstile board |
| Power Supply | 24V 150W |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
