What Makes a Great Tripod Turnstile Manufacturer? Features, Technology & Industry Know-How
Introduction

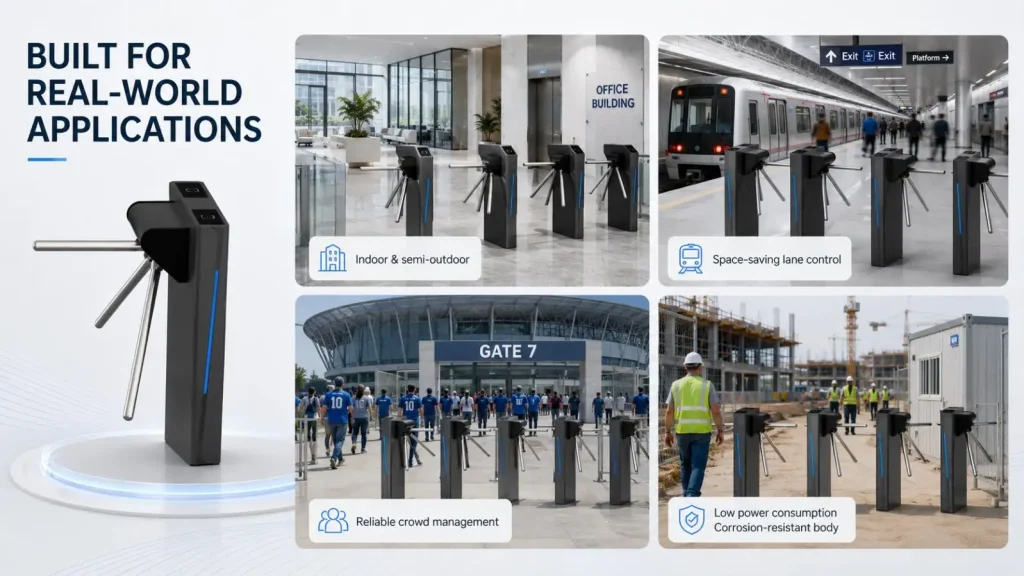

The tripod turnstile is amongst the most reliable, effective, and robust solutions for managing pedestrian access control. From office and construction site turnstiles to those deployed at stadiums and public transport turnstiles, a good tripod turnstile is capable of managing pedestrian flow, preventing unauthorized access, and can be integrated with other access systems.
Of course, not all tripod turnstile manufacturers are equally reliable, innovative, or provide the same long-term benefits. This article is a complete guide for facility managers, system integrators, and corporate buyers. It explains how to seek manufacturers and conduct horizontal and vertical comparison analyses of manufacturers, understand various specifications, and provides guidance on the challenges of modern access control systems.
What Defines a Quality Tripod Turnstile Manufacturer?
Horizontal Comparison
Tripod Turnstiles vs. Other Pedestrian Barriers
Before focusing on manufacturers, it is useful to provide a wider context of the barriers to pedestrian access control systems.
•Tripod turnstiles vs swing gates – Tripod turnstiles take up less space and consume less power. Their rotating arms also provide superior anti-tailgating. Swing gates, however, are more accommodating to wheelchair access.
•Tripod Turnstiles and Speed Gates - Managing crowds of 35 to 50 people per minute is best achieved using Tripod Turnstiles. Turnstiles tend to have much lower maintenance costs. Speed Gates can sustain a greater throughput of 60 pp/min but are more complex and more expensive.
•Tripod Turnstiles and Full-Height Turnstiles - Full-height Turnstiles are most suitable for perimeter fencing. Tripod Turnstiles are best suited for indoor and semi-outdoor fencing where Turnstile aesthetic and flexibility are more important.
✅ Conclusion: If high quality, function-oriented, and easy-to-integrate systems are important to you, a well-manufactured tripod turnstile from a reputable company will sustain the best cost over the life of the system.
Vertical Comparison
How Are the Leading Tripod Turnstile Manufacturers Distinct?
Tripod turnstile manufacturers can be differentiated by the following three major areas of their business:
•Basic technology - Some businesses still rely on outdated designs that use brushed motors and mechanical counters. The best manufacturers have moved on from these outdated designs to brushed motors and their own custom designs that ensure quieter use, longer lifespans, and advanced anti-tailgating logic.
•Materials & environment - Low-end products primarily consist of stamped steel or plastic. Top manufacturers will have 3.0mm aluminum alloy and or stainless steel and have made a commitment to be reliable for outdoor use and made IP rated assemblies.
•Integration flexibility – Basic products offer only dry-contact I/O. Superior manufacturers provide RS485, Wiegand, and open API support, plus compatibility with IC/ID cards, QR codes, and face recognition without hardware modifications.
When you compare tripod turnstile manufacturers side by side, those investing in R&D, standardized electrical interfaces, and field-proven hydraulic dampers consistently outperform commodity suppliers.

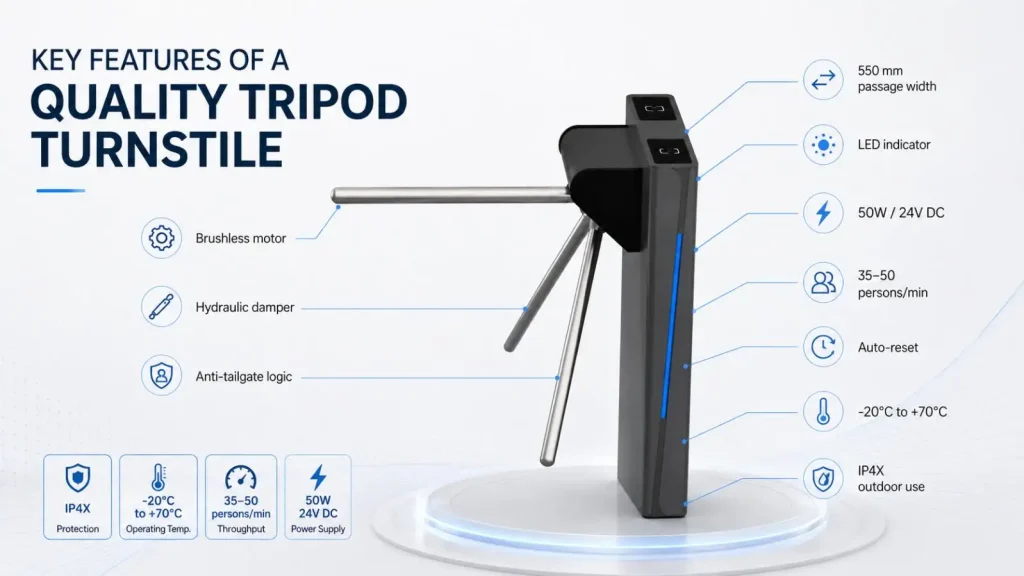

Important Features for a Tripod Turnstile
We offer these product features to help you assess Tripod Turnstile manufacturers for reference to Turboo LA1218 product features:
1. Core Functionality
•Movement Control Brushless Motor – Very quiet, and good for long periods of continuous use. Reduces heat and electrical wear.
•Tripod Movement Anti-Tailgate and Hydraulic Damper – Gentle arm descent prevents injury. Maintains one pass logic.
•Average Pass Rate of 35-50 persons/minute – Standard for access to offices during peak hours and for high density entries to events.
2. User & Security Features
•LED Indicator (RGB) – Valid card = green. Invalid = red. Feedback reduces the operational burden of the device.
•Memory Mode (configurable) – Device can be set to "with memory" allowing repeated passes for one credential or "without memory" requiring one credential per passage.
•Auto-reset – Cycle is reset after specified time (ex. 5 sec.) if turnstile is not passed. Prevents piggybacking.

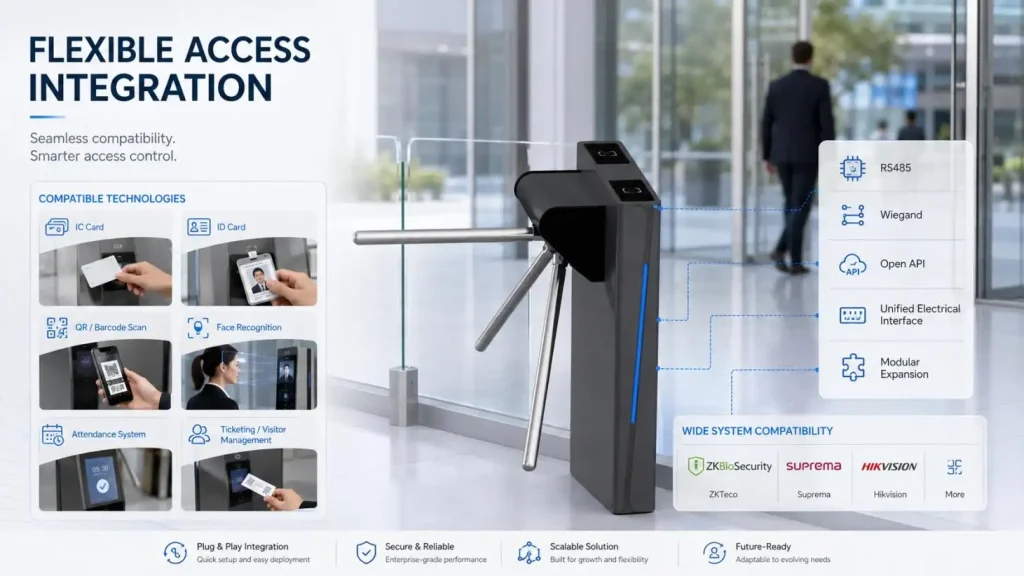

3. Integration & Expandability
•External Electrical Interface (unified standard) – Compatible with most access control units, attendance/ticketing kiosks.
•Compatible Technologies – IC cards, ID cards, barcode/QR, biometric face, and other recognition terminals.
•Functionality – Fee collection and visitor management systems can be built on turnstile frame.
4. Quality & Environment
•Body Construction – 3.0mm Aluminum alloy with 8.0mm top piece, strong, corrosion and vandal resistant.
•Width of Passage – 550 mm, standard width for pedestrian flow.
•Power Consumption – 50W- 24V DC power supply. Very efficient.
•Temperature range – -20℃ to +70℃ – Truly suitable for outdoor use (IP4X).
•Humidity – ≤90% non-condensing – Reliable in coastal or rainy regions.
*Note: While many tripod turnstiles are labeled "indoor," the LA1218's all-aluminum construction and wide temperature tolerance allow it to be used completely outdoors – a single unit can even serve as a standalone lane.*
Right Tripod Turnstile Manufacturer: 4 Pillars of Long-Term Value
After reviewing dozens of projects, we've identified four areas where a superior manufacturer makes the difference:
•Design & craftsmanship – High-end aesthetics with custom finish options (brushed, powder-coated, or anodized) blend seamlessly into any architectural environment.
•Future-proof technology – Since access technologies are constantly changing, we use brushless motors, modular control boards, and firmware that can be updated.
•Installation support – Our turnkey solutions optimize site time with professional design, installation, and project management.
•Service network – Repair and maintenance for every make and model means we're confident in our solutions.
With a nearly two-decade specialization in turnstile production, a Turboo tripod turnstile will give you a partner committed to keeping your systems operational and compliant, with a user-centered focus.
Meet Turboo: A Leading Tripod Turnstile Manufacturer with Proven Expertise
Founded in 2006, Turboo Automation Co., Ltd., a national high-tech enterprise, specializes in developing, producing, selling, and servicing cutting-edge pedestrian access control products. From its bases in Shenzhen and Jiangxi, Turboo has established itself as one of the leading turnstile manufacturing companies in China.
Key Statistics
��20+ years of focused experience in pedestrian access gates
��50+ R&D professionals
��100+ countries of export
��200+ product patents (continuously innovating)
Why Turboo Stands Out in the Tripod Turnstile Market
•Design-driven – Unmatched craftsmanship and high-end aesthetics with a broad array of custom finishes. Every product, including the LA1218, is built to elevate the entry experience.
•Future-proof technology – Brushless motors, hydraulic dampers, and "with/without memory" logic keep your system adaptable for years.
•Full-scale production – Integrated production lines and strong manufacturing capacity allow efficient fulfillment of large-volume orders, from standard products to deeply customized solutions.
•Security and reliability - Over 100 countries depend on Turboo's products for securing airports, train and bus rapid transit stations, construction sites, office buildings, tourist sites, and parks. Both domestic and international companies trust Turboo.
Final Thoughts
Upgrading security at a single entry point, or many, depends on the choice of a tripod turnstile manufacturer. Many factors will drive the decision including security and user experience. Operating costs will be affected as well. Compare the turnstile against other barriers horizontally and against the top competitors in the industry vertically. Look for a partner like Turboo who offers strong design, ease of use, and service across the world.
The Turboo LA1218 tripod turnstile is a great option for projects that require all three - design, reliability, and return on investment. Turboo Automation offers many options. Schedule a consultation today if you would like a custom turnstile, sample to test, or a quote for bulk pricing.
Smart access starts with Turboo. Secure your operations. Choose Turboo.
FAQs
Q1. What are tripod turnstiles for?
These are used to control pedestrian access in offices and transport hubs.
Q2. Where can tripod turnstiles be placed?
There are many models which can even be used outside. Turboo's LA1218 can be used in climates between -20 and +70 degrees Celsius, and have an IP rating of 4x.
Q3. What systems can be integrated with a tripod turnstile?
These turnstiles can be integrated with all systems of identification and access including ID cards, QR codes, and face recognition.
Q4. What is the average passing rate for a tripod turnstile?
35 to 50 people per minute depending on how quickly users want to pass.
Q5: What is "memory mode" on a turnstile?"With memory" allows multiple passes after one credential; "without memory" requires one credential per pass.
