Tow Ways Safety Self Close SUS304 Compact Swing Barrier Gate Z318
- Cabinet: SUS304 stainless steel, net weight 17kg - Compact size, simple installation - Adopts integrated brushless swing barrier movement - Throughput: 35–50 people/min
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life；
- Optional features include with function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
- Card can be set "with memory" or "without memory" functions;
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- Optional features include infrared anti-pinch function and obstacle detection rebound function (anti-clip when gate is open or running);
- Compatible with IC, ID card, scanning and face recognition, etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading, etc.
Visual scene render

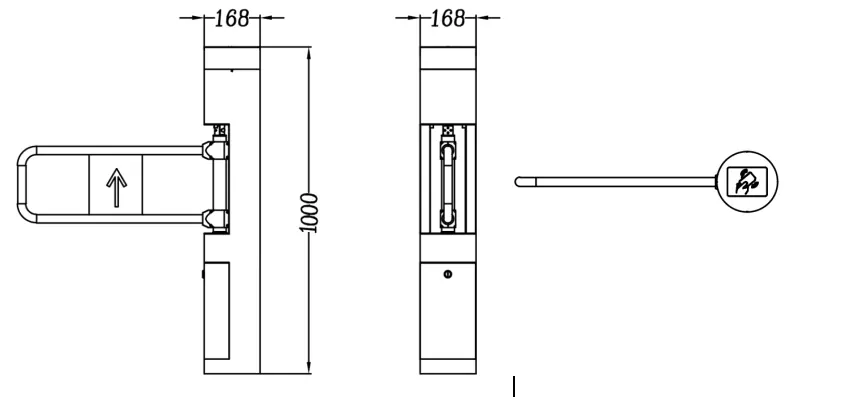

Size Drawing
Parameters
| Size | 168* 168* 1000mm |
| Width | 600-900mm |
| Weight | 17kg |
| Material | SUS 304 |
| Thickness | 2.2mm |
| Baffle panel | 0.9mm SUS 304 |
| Movement | FD brushless integrated swing gate |
| Motor | FD brushless 90k 40w |
| Power supply | 24v 150w |
| Control board | 1v2 brushless standard board |
