High-security Subway Ticket Checking Speed Gate T3630

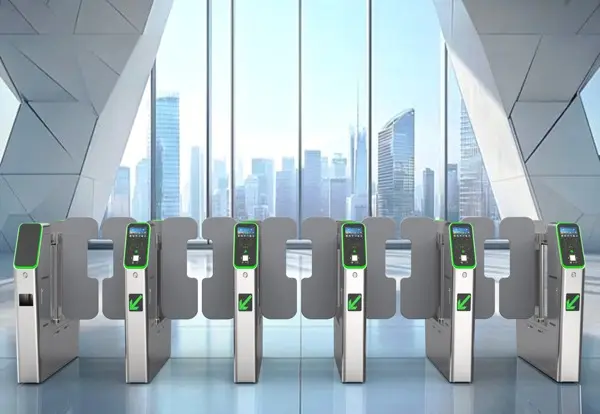

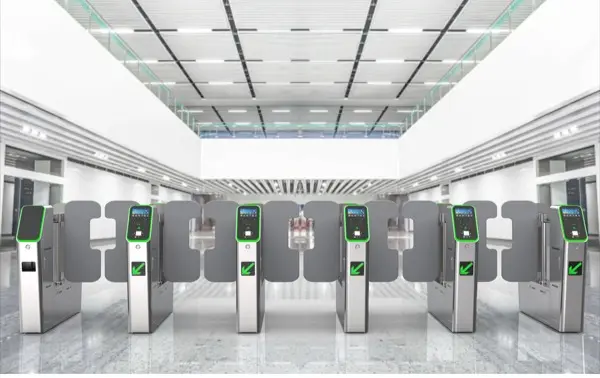

Designed for passenger access and ticketing control at subway, high-speed rail, airport and other transit terminal entrances and exits. Modular construction ensures convenient installation and maintenance.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |
Size Drawing
 |
Parameters
| Size（L*W*H) | 2100*220*1150mm | |
Chassis |
Top cover | 2.0mm SUS304 |
| Housing | 2.0mm SUS304 | |
| Filling Panel | 10mm transparent acrylic | |
| Movement | Mechanism | Servo direct driver swing gate movement |
| Door panel | PU arm | |
| Pass Lane | 600-900mm | |
| Electronic control | Control board | Servo standard board + driver board + logic board |
| Motor | Servo direct drive brushless motor 200W | |
| IR sensor | 24 pairs | |
| Air switch | 2P | |
| Power supply | 48V 450W | |
| Accessories | Connection cable | 5m 2*1.0m㎡ RVV |
| Network cable | 5m Both ends with crystal tips | |
| Package | Pearl cotton | Foam liner |
| Cardboard box | 2160*280*1210 | |
