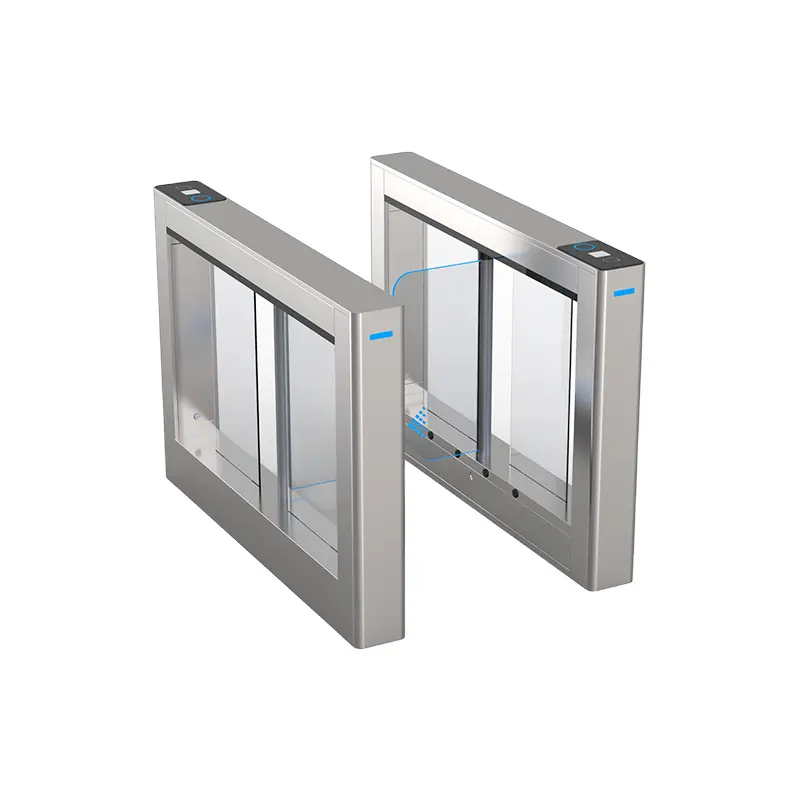

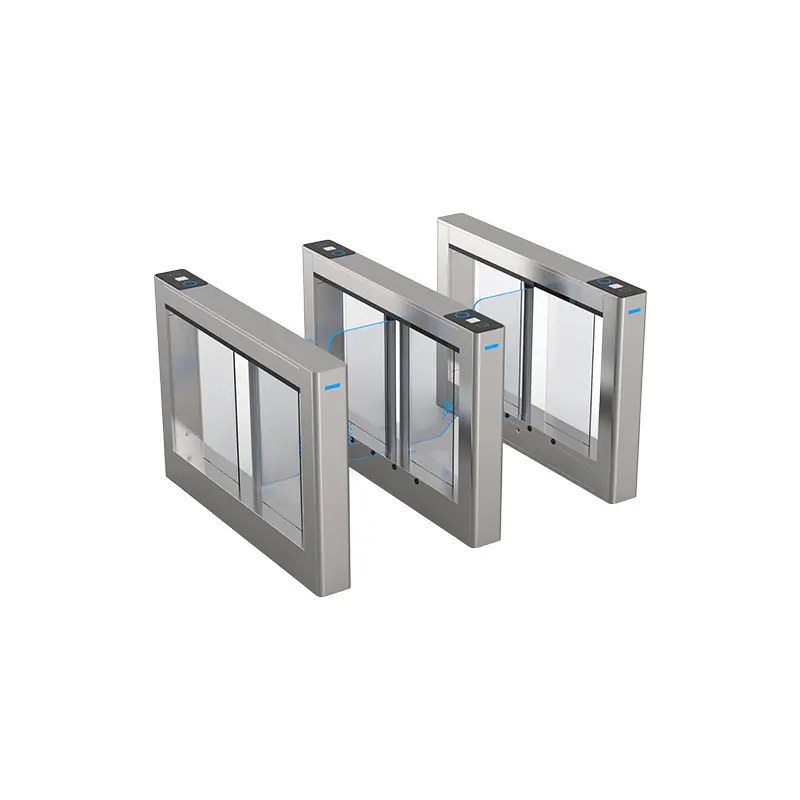

Turnstile Manufacturer Wholesale Custom Swing Turnstile Gate H3221
Simple and elegant design, equipped with 6 pairs of infrared sensors. Effectively preventing tailgating and pinching. Suitable for entrance of high-end commercial building, gyms, fitness center, supermarket, etc.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life；
- With functions of anti-tail, anti-reverse pass and so on;
- Card can be set "with memory" or "without memory" functions;
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- With infrared anti-clip function (anti-clip when gate is open or running);
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
  |
Size Drawing
 |
Parameters
| Size（L*W*H) | 1500*200*980mm | |
Chassis |
Top cover | 1.2mm SUS304 |
| Housing | 1.2mm SUS304 | |
| Filling Panel | 8mm Transparent acrylic | |
| Movement | Mechanism | Brushless integrated swing turnstile |
| Door panel | 10mm Transparent acrylic | |
| Pass Lane | 600-900mm | |
| Electronic control | Control board | Brushless standard board |
| Motor | Brushless motor 90K 40W | |
| IR sensor | 6 pairs | |
| Air switch | 2P | |
| Power supply | 24V 150W | |
| Accessories | Connection cable | 5m MX3.0 black terminals at both ends |
| Network cable | Both ends with crystal tips | |
| Package | Pearl cotton | Foam pearl cotton |
| Cardboard box | 1560*260*1040 | |
