Security Automatic 2-Way Operation RS485 Access Control System Integrated Swing Barrier Gate
Z312 Short bodied swing gate, with adjustable lane width of 600–900mm. Suitable for disabled access and electric vehicle passages. Built-in servo mechanism enables rapid response. Anti-pinch function with automatic rebound on touch ensures safety and efficiency.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- 1、Reasonable and reliable design, low noise, smooth operation and long service life；
- 2、Optional features include with function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
- 3、Card can be set "with memory" or "without memory" functions;
- 4、With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- 5、Optional features include infrared anti-pinch function and obstacle detection rebound function (anti-clip when gate is open or running);
- 6、Compatible with IC, ID card, scanning and face recognition,etc.
- 7、Two modes of operation are available: open or closed.
- 8、Various working modes are available, including two-way card reading and one-way card reading, etc.

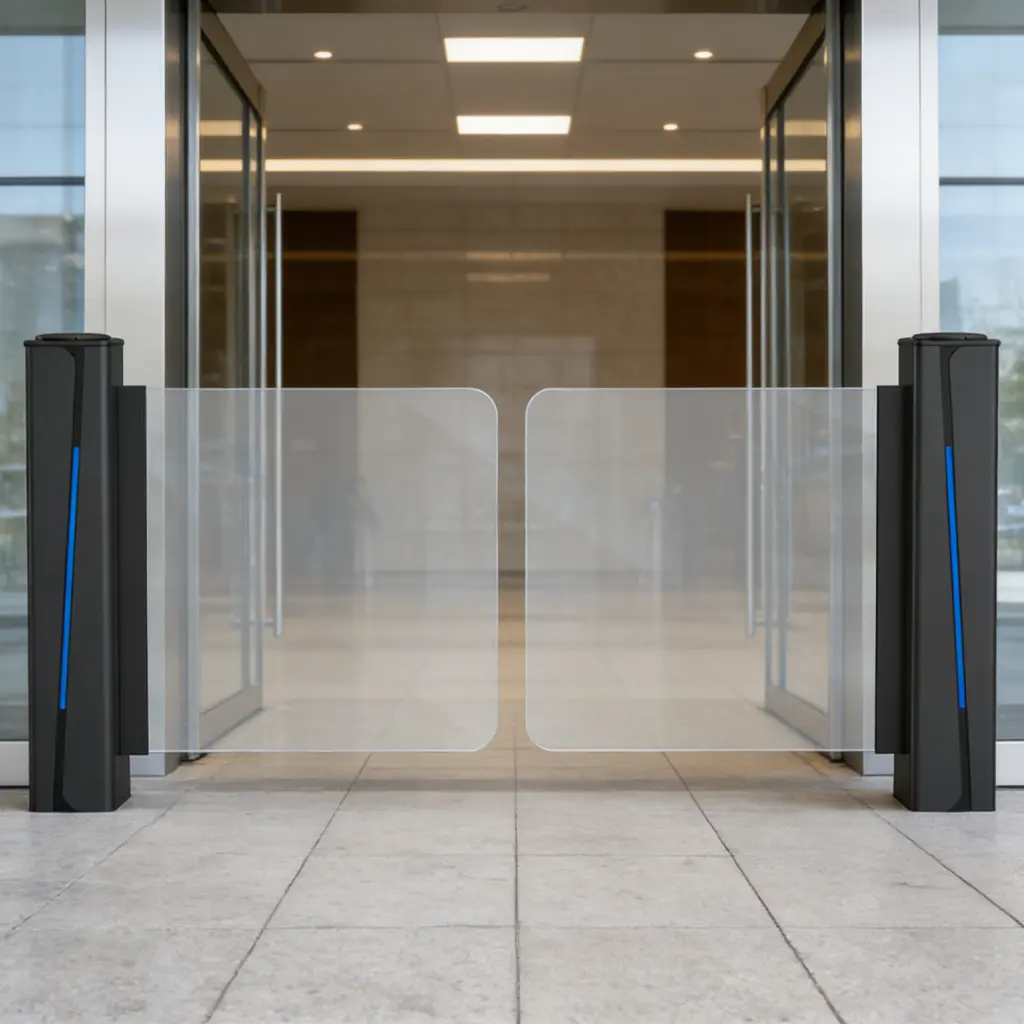

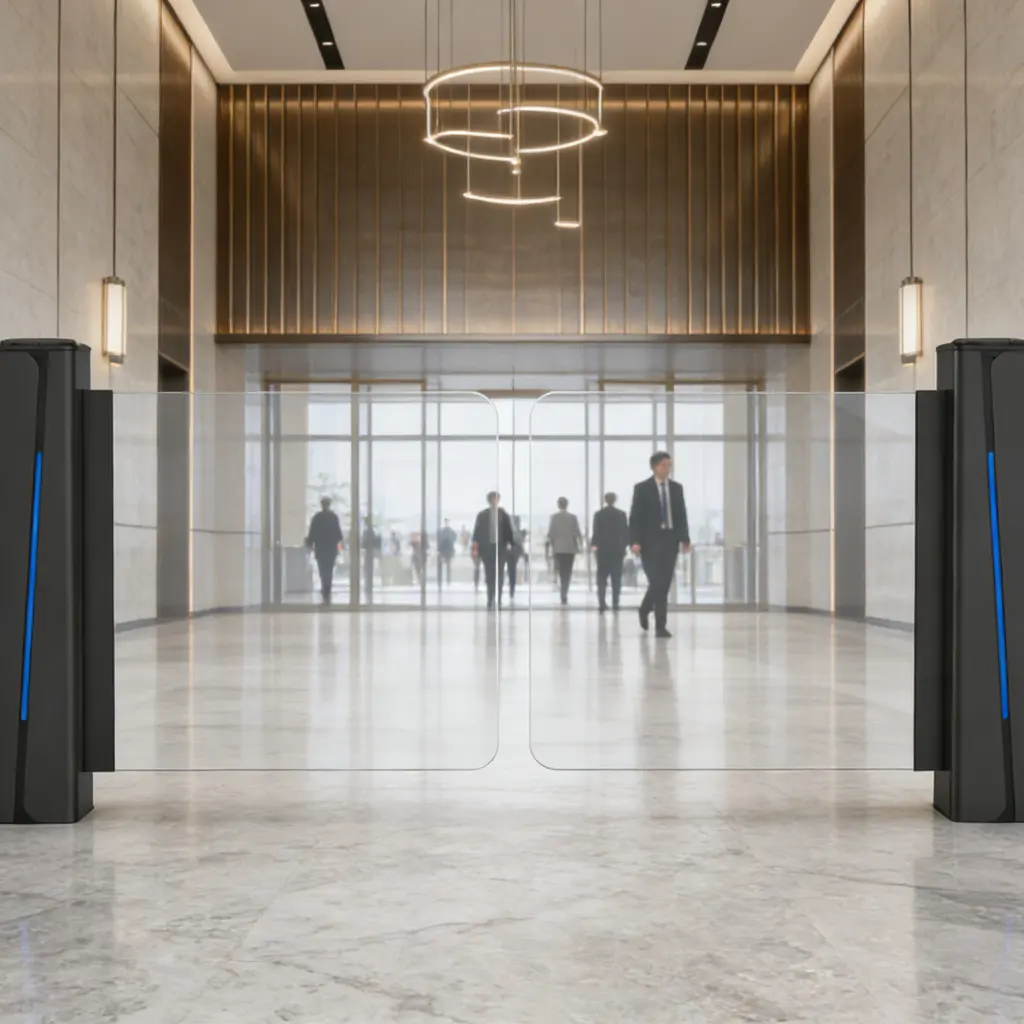

Visual scene render
 |
 |

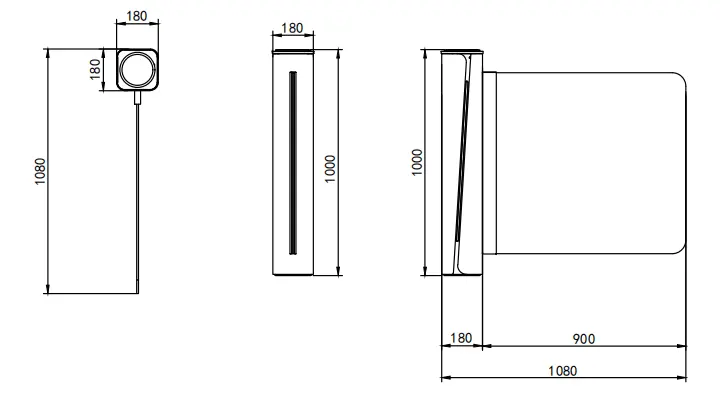

Size Drawing
Parameters
| Size | 180* 180* 1000mm |
| Width | 600-900mm |
| Weight | 48kg |
| Material | Aluminum alloy |
| Thickness | Body 3.0mm + Top cover 8.0mm |
| Baffle panel | 10mm Transparent acrylic |
| Movement | Servo cylindrical swing gate |
| Clutch |
94mm Jaw clutch |
| Indicator light | RGB light |
| Motor | XC brushless servo 70:1 200W |
| Power supply | 24v 500w |
| Control board | Integrated servo drive board |
