Fast Response Security Swing Gate with Multiple Access Interactive Functions Z313
Z313 is a short swing turnstile from Turboo Z Series. It adopts SUS304 brushed stainless steel sheet with 1.2mm thickness for the whole unit. Compact, durable and cost-effective. The barrier panel is assembled with 10mm acrylic panels and fitted with RGB lights, creating a more stereoscopic visual effect to guide pedestrians through the lane.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life；
- Optional features include with function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
- Card can be set "with memory" or "without memory" functions;
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- Optional features include infrared anti-pinch function and obstacle detection rebound function (anti-clip when gate is open or running);
- Compatible with IC, ID card, scanning and face recognition, etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading, etc.

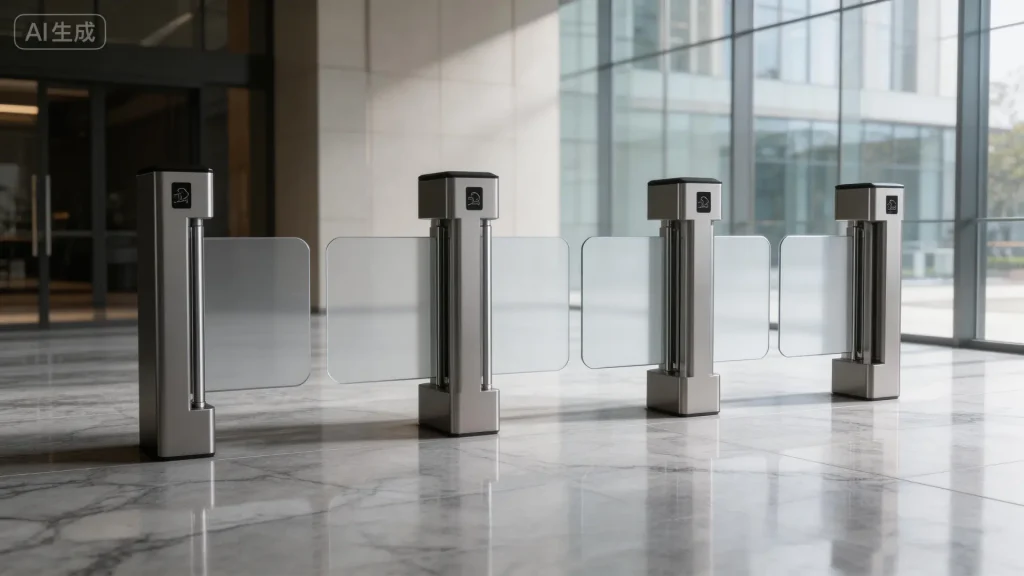

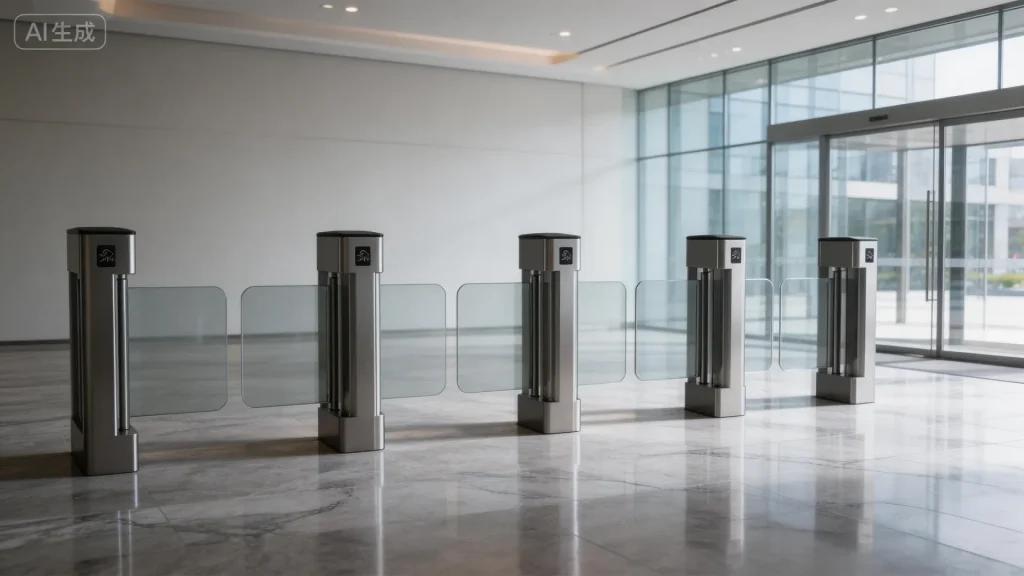

Visual scene render
 |
 |

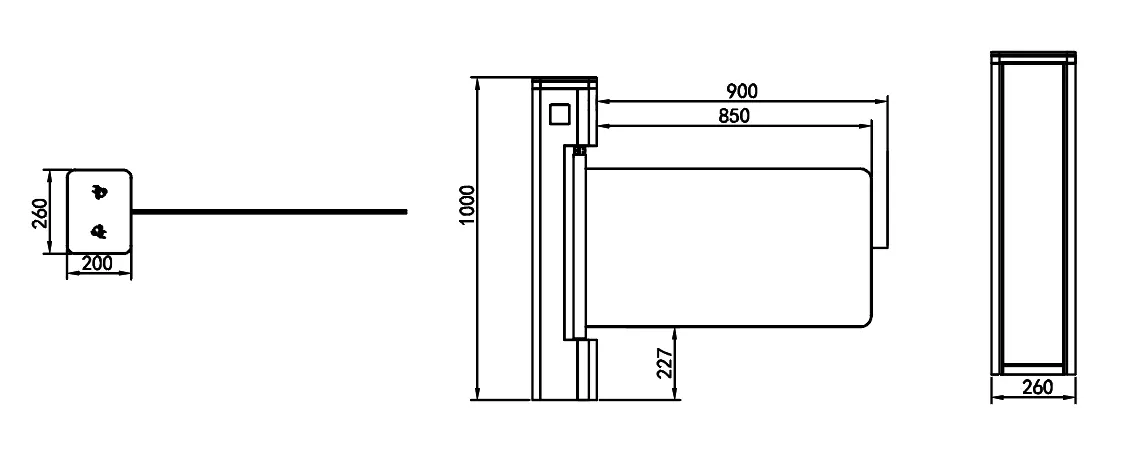

Size Drawing
Parameters
| Size | 200* 260* 1000mm |
| Width | 600mm |
| Weight | 24kg |
| Material | SUS 304 |
| Thickness | 1.2mm |
| Baffle panel | 10mm Acrylic transparent + RGB light |
| Movement | LY brushless integrated swing gate |
| Motor | LY DC brushless 60k 450w |
| Power supply | 24v 150w |
| Control board | 1v2 brushless standard board |
