Security Anti-tailgating Brushless Motor Pedestrian Access Control Swing Barrier Gate ES3216S

ES3216S is a short version of the swing gate in the ES series of Turbo products. Compared to the regular ES3216, it is 200mm shorter, making it more suitable for areas that are narrow but require personnel access control. The entire machine is made of 304 stainless steel, which is both durable and attractive.

GET FREE QUOTE

Face Recognition

IC/ID Card

Temperature Detection

QR

Features

Visual scene render

Size Drawing

Parameters

Download

Consult

Reasonable and reliable design, low noise, smooth operation and long service life;
With functions of anti-tail, anti-reverse pass and so on;
Card can be set "with memory" or "without memory" functions;
With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
With infrared anti-clip function (anti-clip when gate is open or running);
Compatible with IC,ID card, scanning and face recognition,etc.7、Two modes of operation are available: open or closed.
Various working modes are available, including two-way card reading and one-way card reading, etc.

Visual scene render

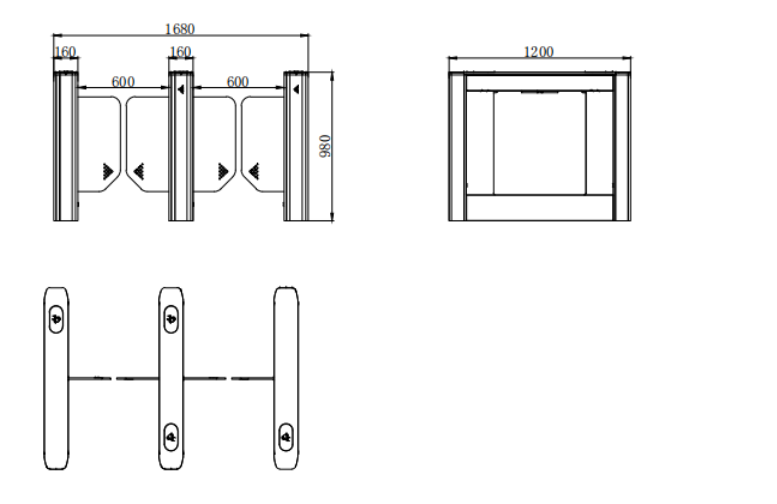

Size Drawing

Parameters

*Size（LWH)*	1200160980 mm
Material	Top δ=1.2mm / body δ=0.9mm SUS304
Filling panel material	10mm Transparent a crylic+RGB light
Arm material	Acrylic+RGB light (optional)
Pass width	600-900mm
Height from ground (upper part)	820mm
Height from ground (lower part)	200mm
Movement	Brushless integrated swing barrier
Power supply	24V 150W
Input voltage	AC100V~240V,50/60Hz
Drive unit	Brushless motor
Pass rate	35-50 persons/minute
Open speed	0.5s/1.5s
Sensor	4 pairs
Indicator light	RGB light
Control unit	1V2 Brushless standard board
Noise	≤65dB
Temperature	-20℃~+70℃
Humidity	≤90% No condensation
IP	IP54
Environment	Outdoor
