High-Security Anti-Tailgate Speed Gate for Airport Border Control M3620-AB
Equipped with 3D module sensors, 64-point light curtains and 20 pairs of infrared detectors, it enables all-round pedestrian detection in the gate channel, delivering high-security anti-tailgating performance for safer and more reliable passage.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Visual scene render
|
Video

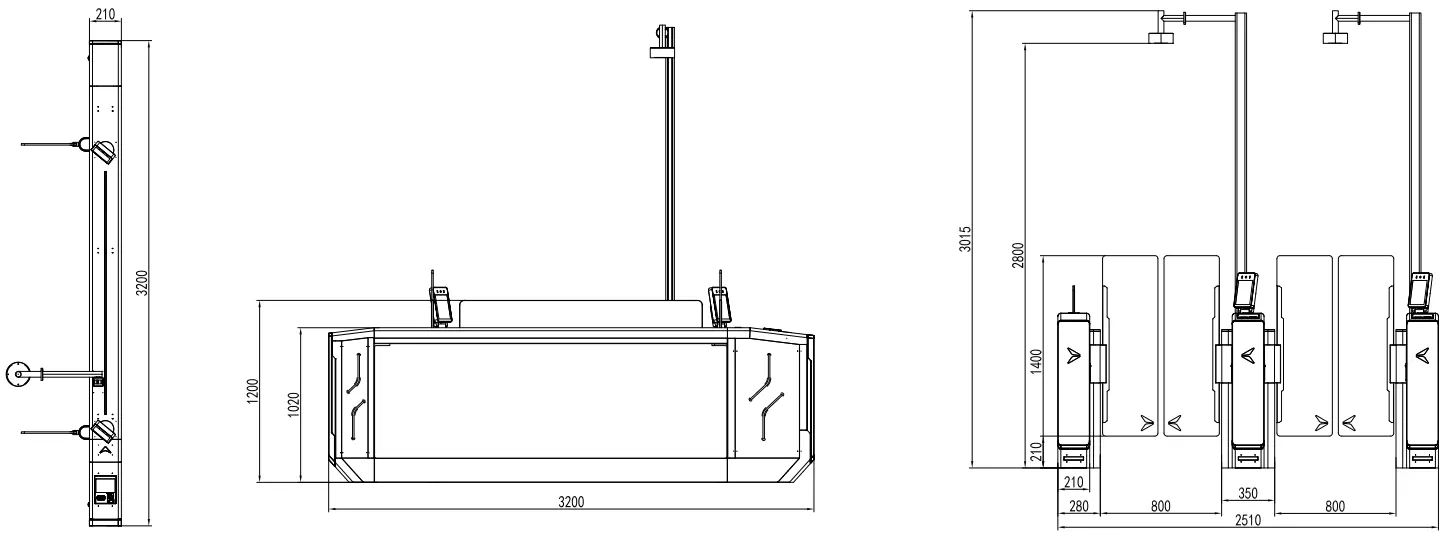

Size Drawing
 |
Parameters
| Size（L*W*H) | 3200*210*1020mm | |
Chassis |
Top cover | 2.0mm cold roller with power coated |
| Housing | 2.0mm cold roller with power coated | |
| Filling Panel | 10mm | |
| Movement | Mechanism | Servo sliding gate |
| Door panel | 10mm Transparent PC | |
| Pass Lane | 600-900mm | |
| Electronic control | Control board | Servo standard board+AB linkage |
| Motor | Brushless servo 40:1 100W | |
| IR sensor | Light Curtain 64 Points+20 pairs +3D Visual Module | |
| Air switch | 2P | |
| Power supply | 24V 500W /12V 150W | |
| Accessories | Connection cable | 5m 2*1.0m㎡ RVV |
| Network cable | 5m Both ends with crystal tips | |
| Package | Pearl cotton | Foam liner |
| Cardboard box | 3260*270*1080 | |
