304 Color Coated Steel Sheet Swing Barrier Gate for Fitness Centers and Supermarkets Z311
Z311 Short Swing Turnstile is made of 304 prepainted stainless steel and black acrylic, with adjustable lane width of 600–900mm. Fitted with XCK mechanical sensors for sensitive detection of passing objects. Ideal for entrances of shopping malls, gyms and residential communities.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life；
- Optional features include with function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
- Card can be set "with memory" or "without memory" functions;
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- Optional features include infrared anti-pinch function and obstacle detection rebound function (anti-clip when gate is open or running);
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.

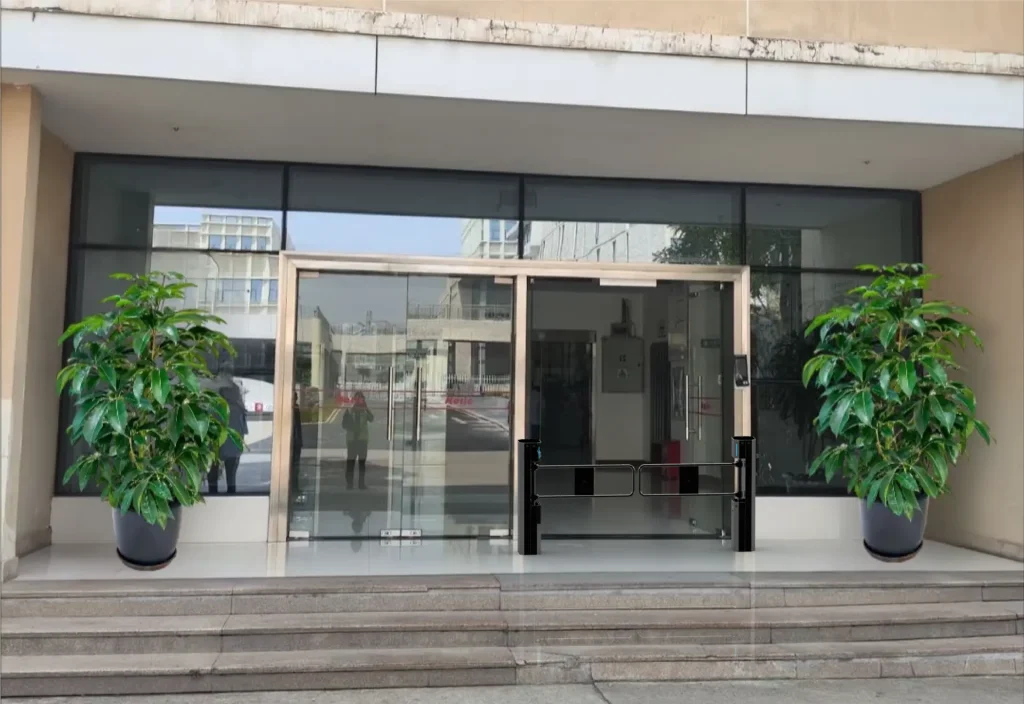

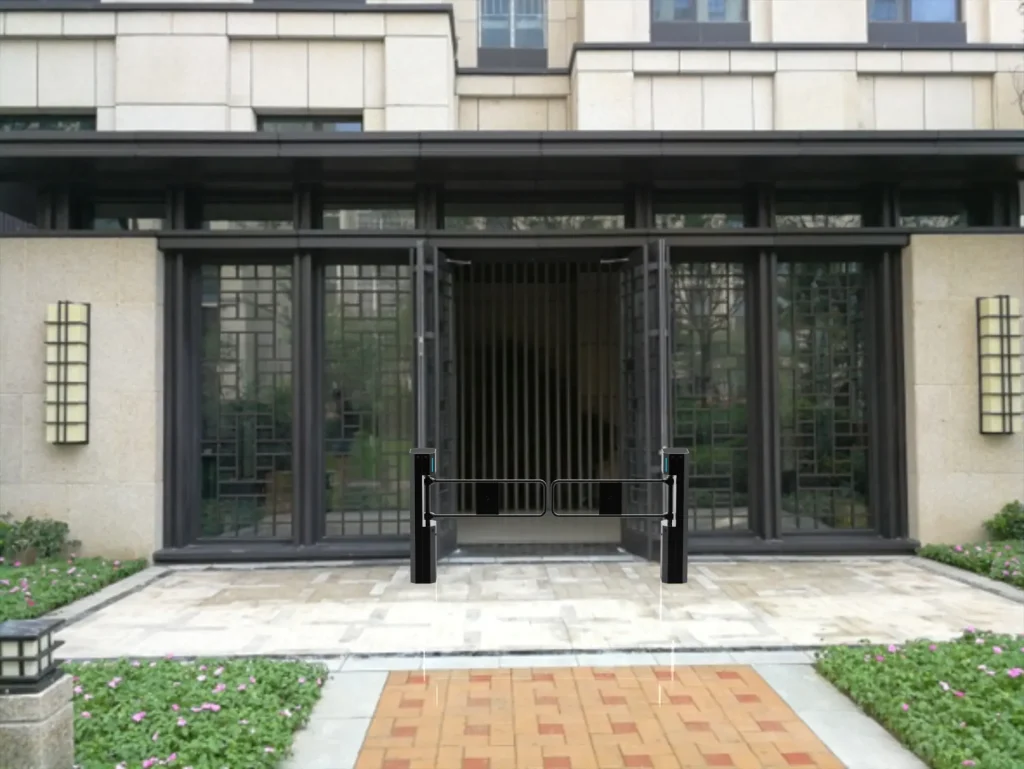

Visual scene render
 |
 |

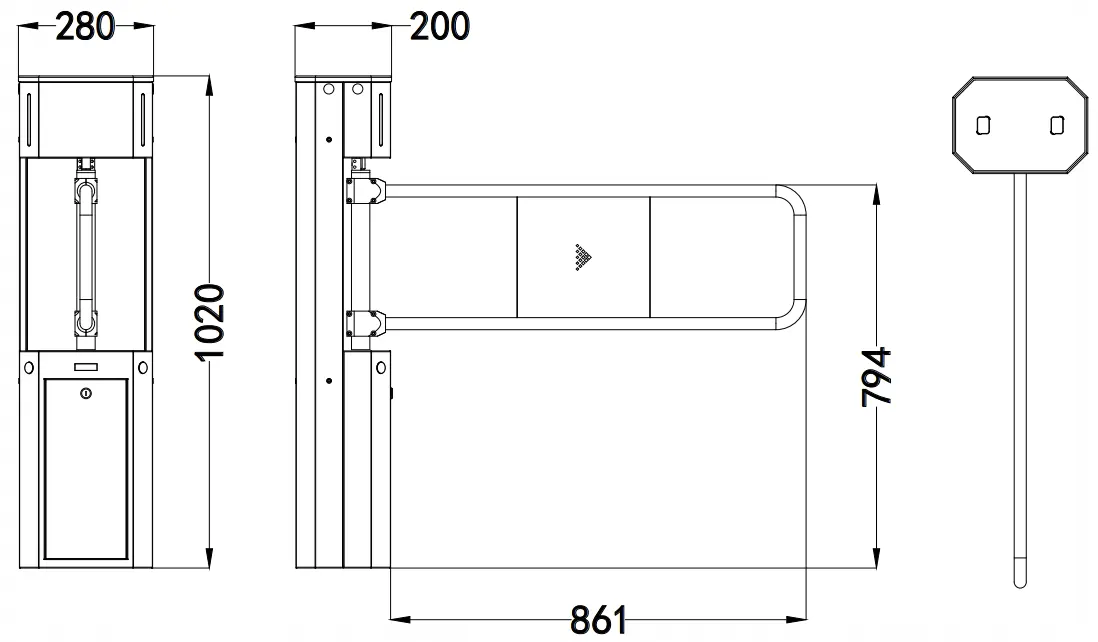

Size Drawing
Parameters
| Size（L*W*H) | 280*200*1020mm |
| Pass width | 600-900mm |
| Power supply | 24V 50W |
| Material | 304 color coated steel sheet + black scrylic |
| Thickness | Body 1.0mm + Top cover12mm |
| Bar material | 0.9 mm SUS304 |
| Movement | FD brushless integrated swing gate |
| IR sensor | XCK mechanical sensors |
| Indicator light | RGB light |
| Control board | 1v2 brushless control board |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
