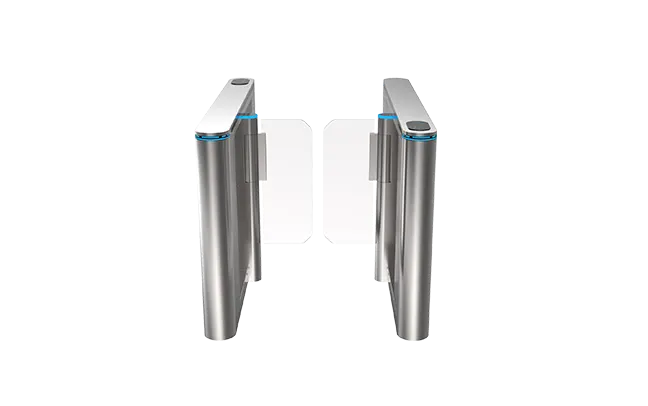

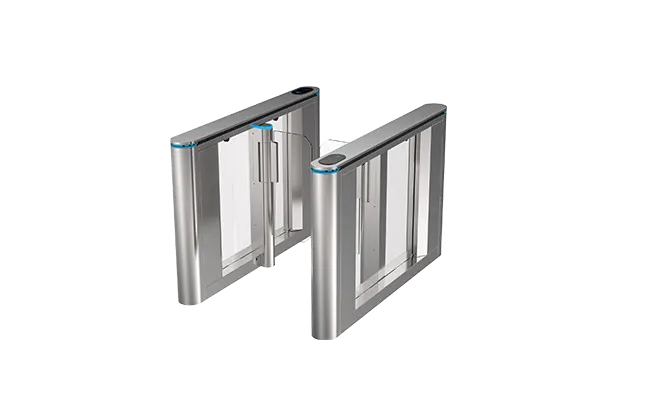

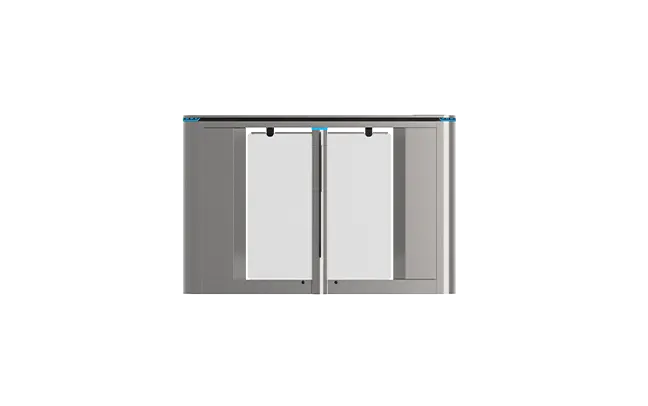

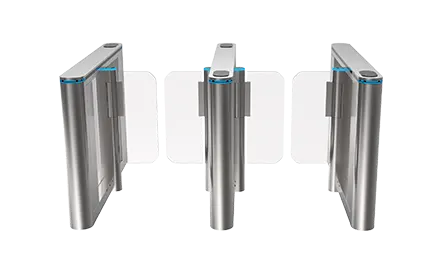

Water-proof No.4 Polish Servo Speed Gate with Slim Body B302

Reasonable and reliable design, low noise, smooth operation and long service life; With functions of anti-tail, anti-reverse pass and so on; Card can be set "with memory" or "without memory" functions; With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;

Face Recognition

IC/ID Card

Temperature Detection

QR

Features

Details

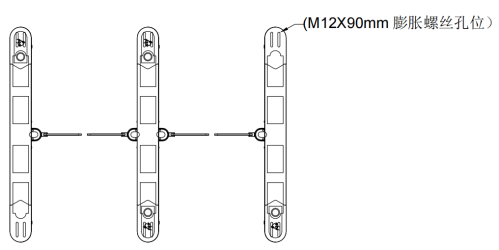

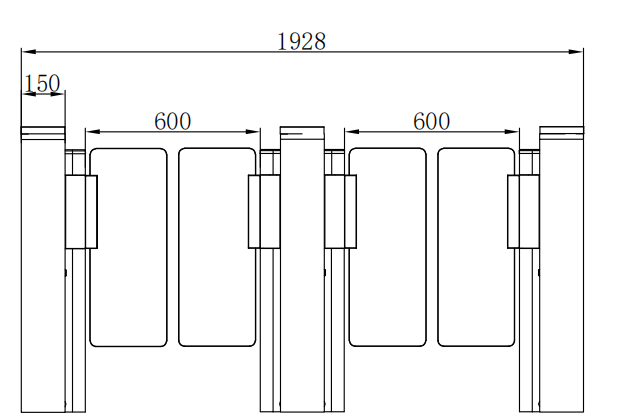

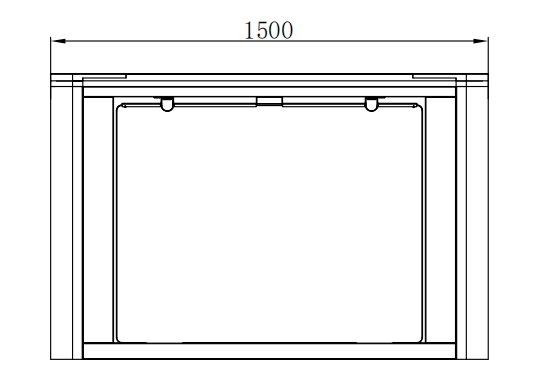

Size Drawing

Parameters

Download

Consult

Variant
Animations
Size(L*W*H) 1500*150*980mm
Pass width 600-900mm
Power 120W
Material δ=1.5mm SUS304
Bar Material 10mm Clean Acrylic
Movement Servo speed gate movement
Infrared sensor 12 pairs
Clutch ∅=80mm
Indicator Light RGB light
Drive Unit Brushless servo Motor 100W
Power Supply 24V 500W
Control Unit Servo control system
Communication Interface Dry contact/ RS485
Pass rate 35-50 persons/minute
Temperature -20℃~+70℃
Humidity ≤90% No condensation
IP IP4X
Environment Indoor and outdoor (outdoor with canopy)
