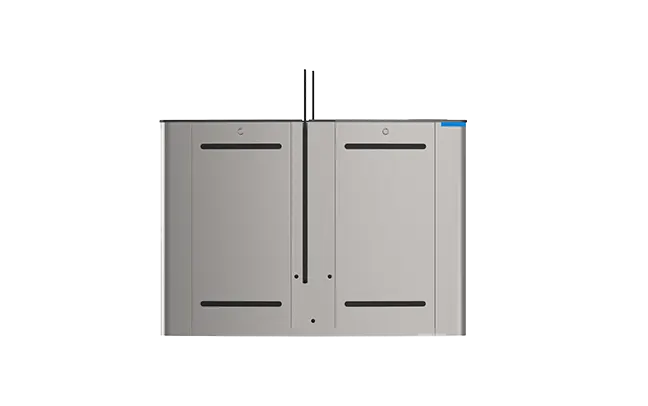

High-end Series SUS304 No.4 Polish Servo Motor Sliding Turnstile A608
Reasonable and reliable design, low noise, smooth operation and long service life; With functions of anti-tail, anti-reverse pass and so on; Card can be set "with memory" or "without memory" functions; With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life;
- With functions of anti-tail, anti-reverse pass and so on;
- Card can be set "with memory" or "without memory" functions;
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- With infrared anti-clip function (anti-clip when gate is open or running);
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.

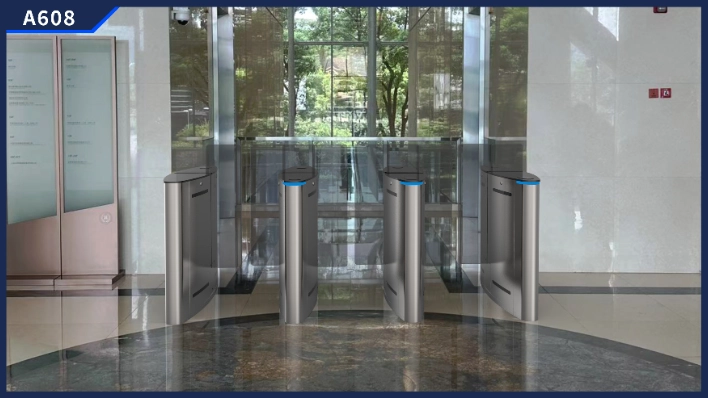

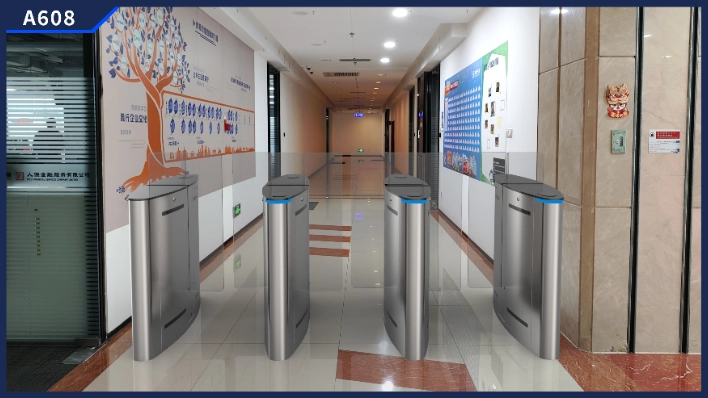

Details
 |
 |

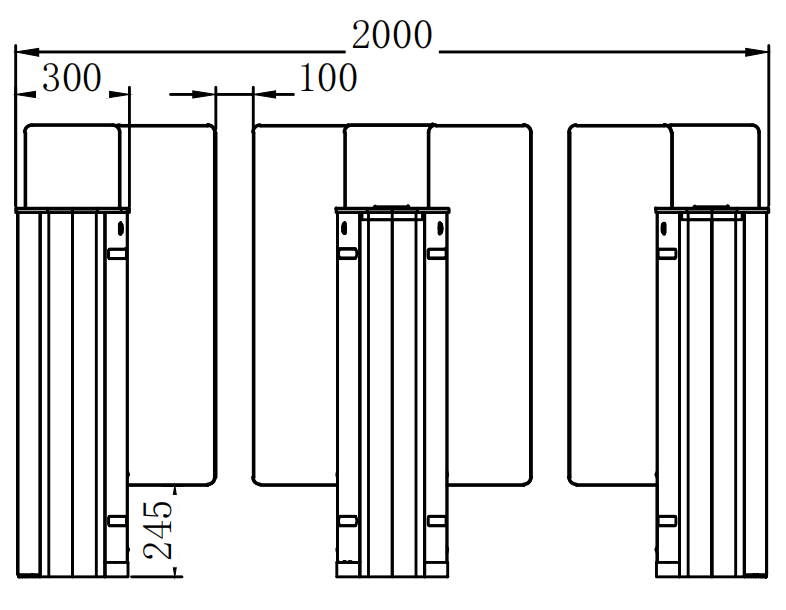

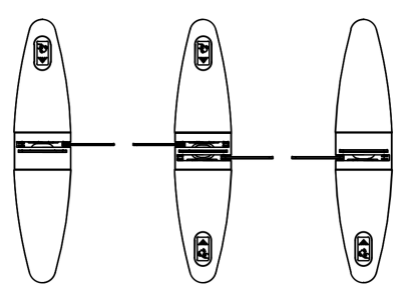

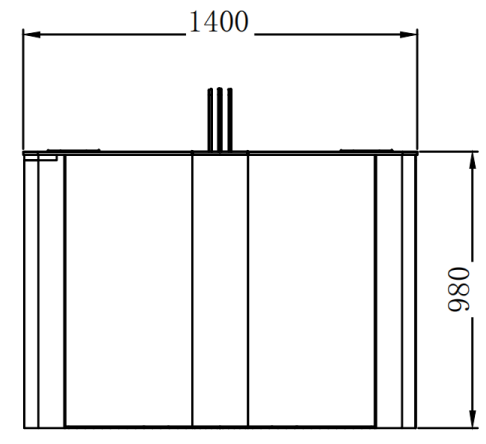

Size Drawing
 |
 |
 |
Parameters
| Size（L*W*H) | 1400*3000*980mm |
| Pass width | 550mm |
| Power | 120W |
| Material | Top T=2.0mm/ body T=1.5mm SUS304 |
| Bar Material | 10mm Clean Acrylic+RGB light |
| Movement | Servo sliding gate Movement |
| Infrared sensor | 7 pairs |
| Indicator Light | Square light+RGB light |
| Drive Unit | Brushless servo 100W |
| Power Supply | 24V 500W |
| Control Unit | Servo control system |
| Communication Interface | Dry contact/ RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
