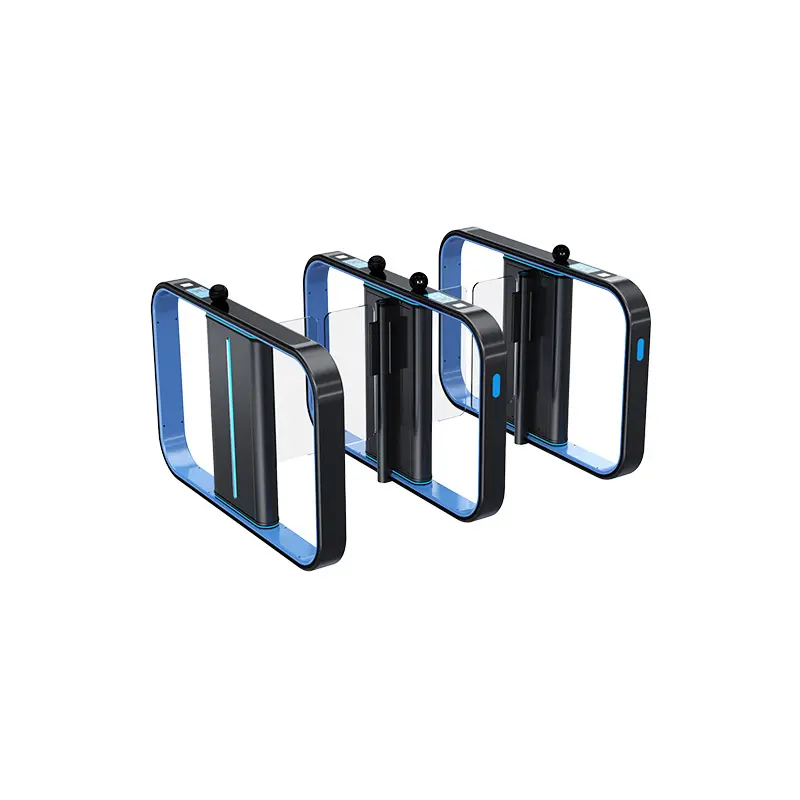

Pedestrian Access Control Speed Gate LA3220
Smooth gate operation aligns with natural pedestrian movement, featuring anti-pinch and anti-tailgating protection.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |

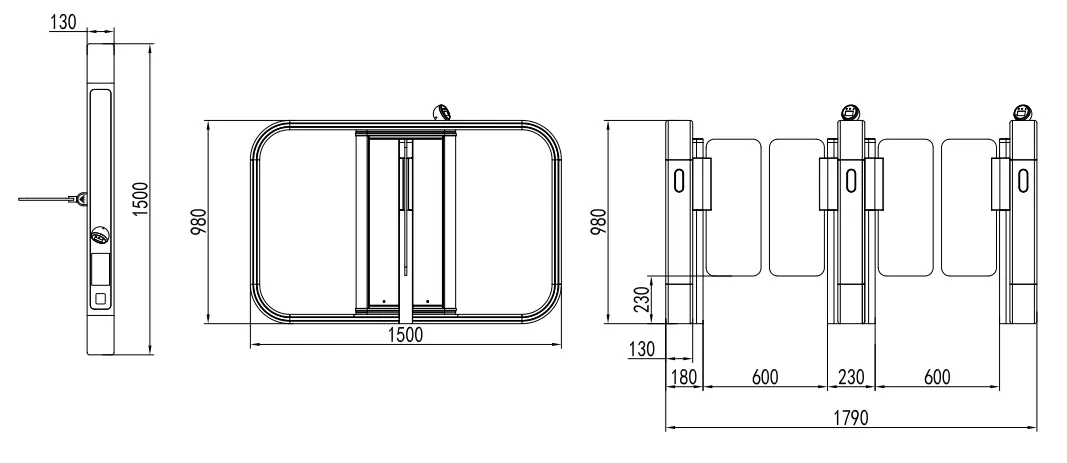

Size Drawing
 |
Parameters
| Size（L*W*H) | 1500*130*980mm | |
| Chassis | Housing | 2mm Aluminum alloy |
| Movement | Mechanism | Servo Speed Door |
| Door panel | 10mmTransparent PC | |
| Pass Lane | 600-900mm | |
| Electronic control | Control board | Servo control board |
| Motor | Brushless servo 40:1 100W | |
| IR sensor | Safety Light curtain/Bar 48 points | |
| Air switch | 2P | |
| Power supply | 24V 500W /12V 3A | |
| Accessories | Connection cable | 5m 2*1.0m㎡ RVV |
| Network cable | 5m Both ends with crystal tips | |
| Package | Pearl cotton | Fully encapsulated protective cotton |
| Cardboard box | 360*200*1460 | |
