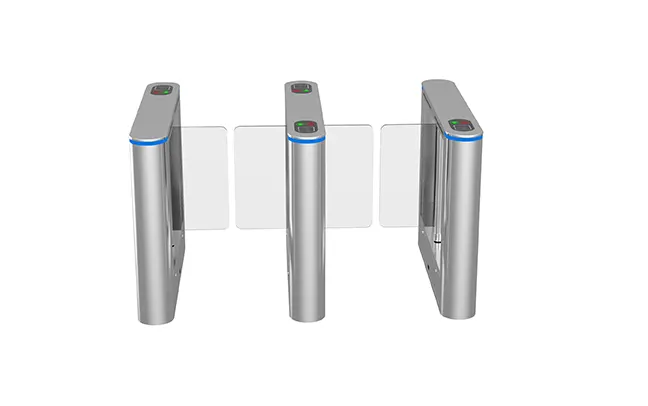

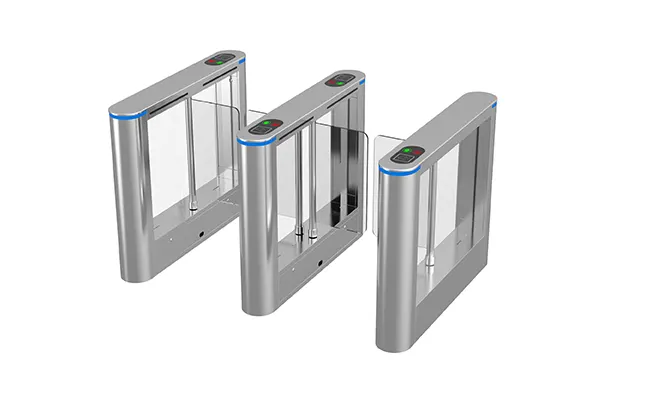

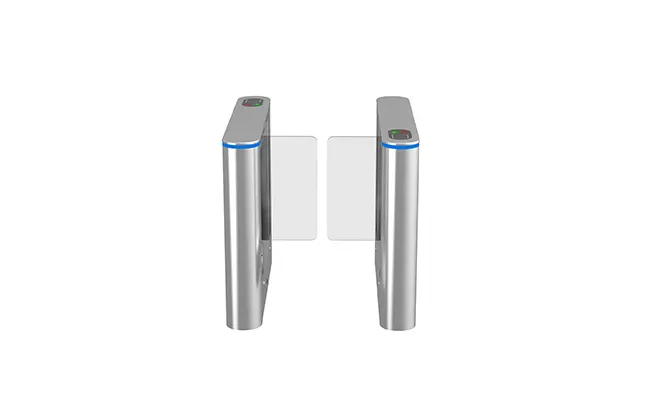

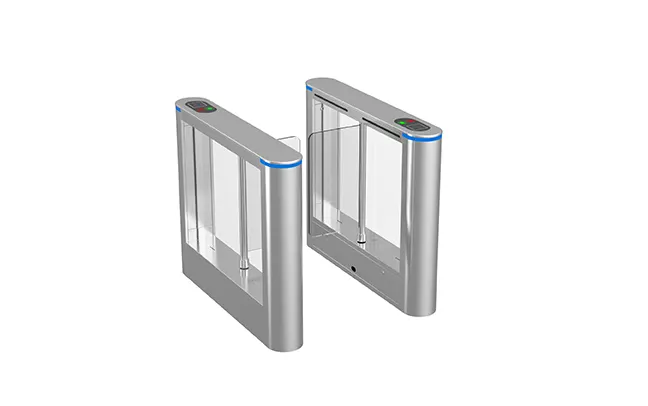

Marble Top Cover Swing Gate ES301
Compatible with IC, ID card, scanning and face recognition, etc. Two modes of operation are available: open or closed. Extensible to realize access control, attendance, fees and other functions. Various working modes are available, including two-way card reading and one-way card reading, etc.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition, etc.
- Two modes of operation are available: open or closed.
- Extensible to realize access control, attendance, fees and other functions.
- Various working modes are available, including two-way card reading and one-way card reading, etc.
Details
Size Drawing
 |
 |
 |
Parameters
| Size（L*W*H) | 1200*185*980mm |
| Material | Top δ=1.5mm/ body δ=1.2mm |
| Filling Panel material | 8mm clear Acrylic |
| Arm material | 10mm clear Acrylic |
| Pass width | 600-800mm |
| Movement | Brushless Movement of Swing Gate |
| Power supply | 24V 150W |
| Input voltage | AC100V~240V,50/60HZ |
| Drive Unit | DC brushless motor 60K 50W |
| Pass rate | 35-50 persons/minute |
| Open Speed | 0.5s/1.5s |
| Sensor | 6 pairs |
| Indicator Light | Square light |
| Control Unit | Brushless control system |
| Noise | ≤65dB |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
