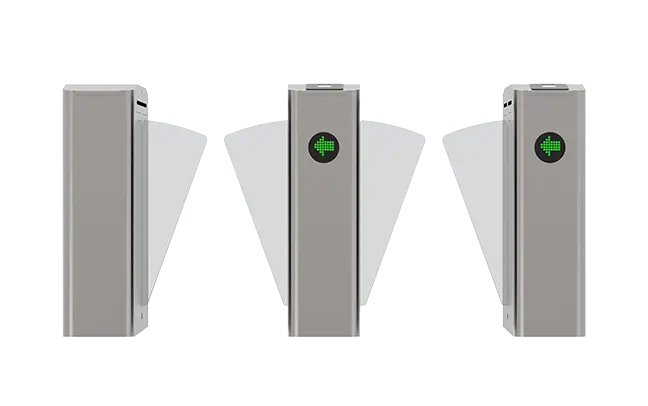

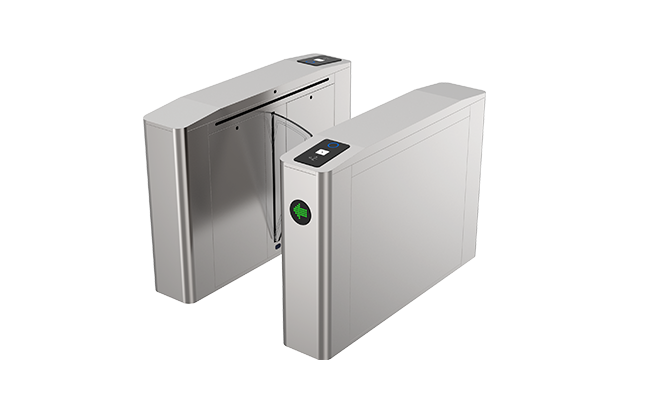

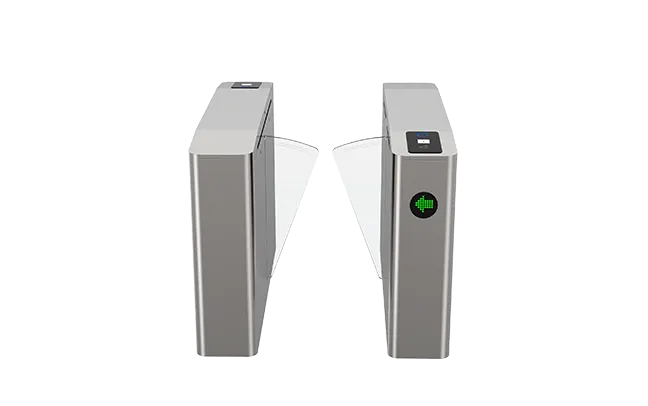

Flap Barrier Stainless Steel Full Welding K249
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |
 |

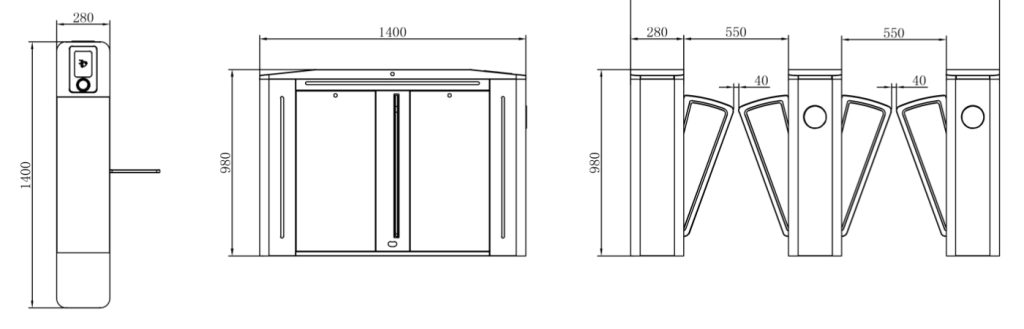

Size Drawing
Parameters
| Size（L*W*H) | 1400*280*980mm |
| Pass width | 550mm |
| Power | 50W |
| Material | δ=1.5mm SUS304 |
| Bar Material | SUS201 |
| Movement | Semi-Auto tripod turnstile movement with anti-pass back function |
| Indicator Light | RGB light+Dynamic indicator light |
| Drive Unit | 10K 30W |
| Power Supply | 24V 50W |
| Control Unit | Main board |
| Communication Interface | Dry contact/ RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
