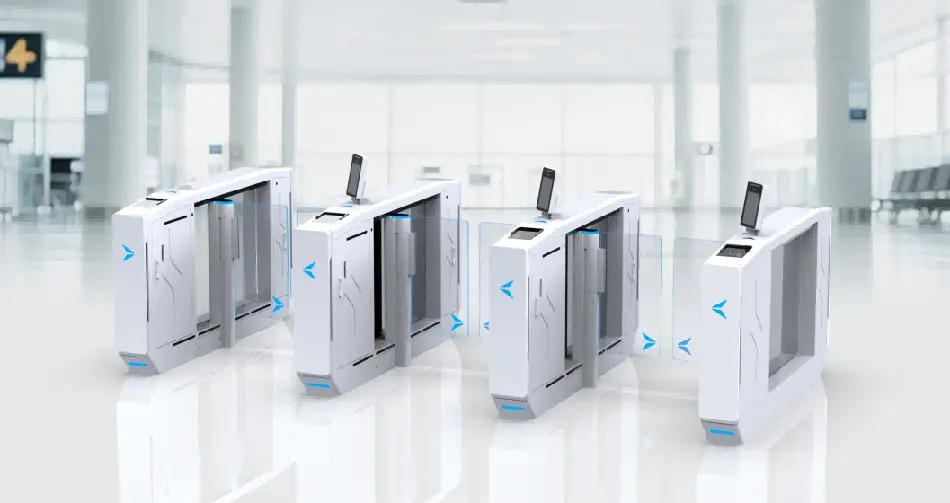

Pedestrian Access Control Turnstile Gate M3621
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |

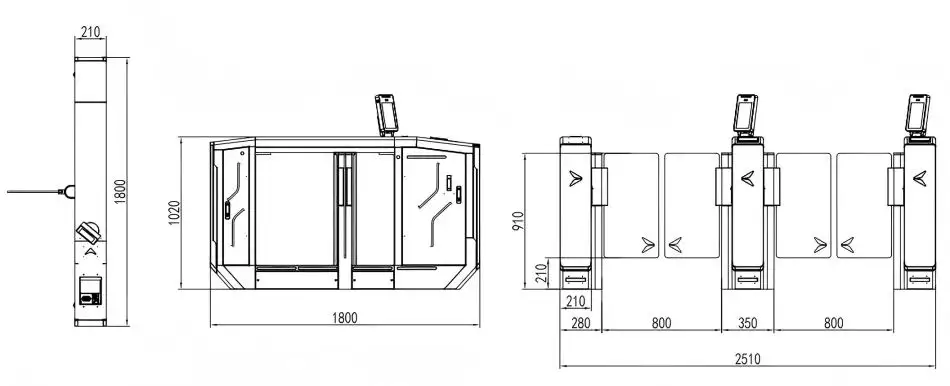

Size Drawing
 |
Parameters
| Size（L*W*H) | 1800*210*1020mm |
| Chassis | Top cover 2.0mm cold roller with power coated |
| Housing 2.0mm cold roller with power coated | |
| Movement | Mechanism Servo Speedway |
| Door panel 10mm | |
| Pass Lane 600-900mm | |
| Electronic control | Control board Servo standard board + driver board + logic board |
| Motor Brushless servo 40:1 100W | |
| IR sensor Light Curtain 64 Points | |
| Air switch 2P 24V 500W /12V 150W/12V 3A | |
| Accessories | Connection cable 5m 2*1.0m㎡ RVV |
| Network cable 5m Both ends with crystal tips | |
| Package | Pearl cotton Foam liner |
| Cardboard box 1860*270*1080 |
