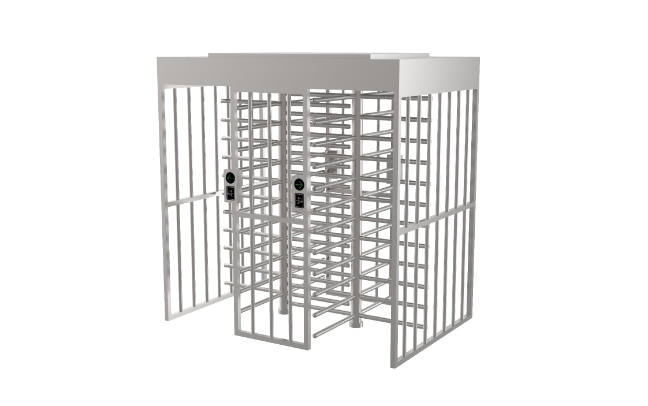

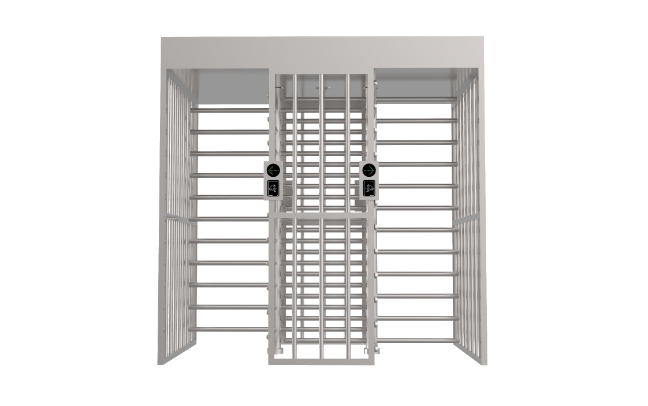

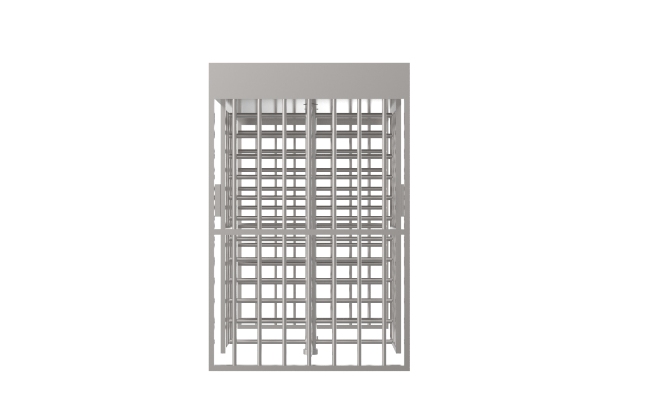

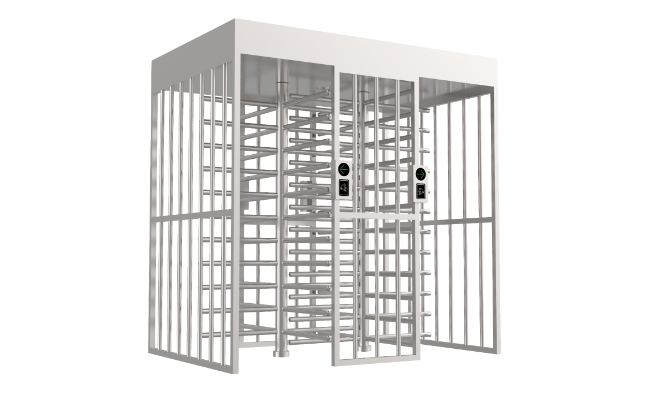

4×90 Degree Full Height Turnstile G5414-2

6666-555

Reasonable and reliable design, low noise, smooth operation and long service life.
With functions of anti-tail, anti-reverse pass and so on.
Card can be set "with memory" or "without memory" functions.
With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
With infrared anti-clip function (anti-clip when gate is open or running).
Compatible with IC, ID card, scanning and face recognition,etc.
Two modes of operation are available: open or closed.
Various working modes are available, including two-way card reading and one-way card reading,etc.

GET FREE QUOTE

Features

Details

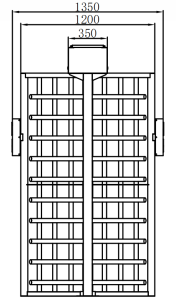

Size Drawing

Parameters

Download

Contact

Reasonable and reliable design, low noise, smooth operation and long service life.
With functions of anti-tail, anti-reverse pass and so on.
Card can be set "with memory" or "without memory" functions.
With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
With infrared anti-clip function (anti-clip when gate is open or running).
Compatible with IC, ID card, scanning and face recognition,etc.
Two modes of operation are available: open or closed.
Various working modes are available, including two-way card reading and one-way card reading,etc.

Details

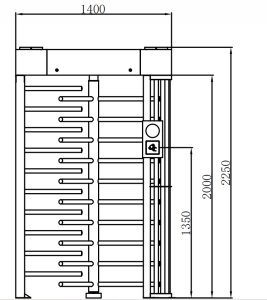

*Size（LWH)*	140012002250mm
Pass width	550mm
Power	50W
Material	Body δ=1.2mm / fence ф=1.0mm / Transmission Shaft ф=2.8mm SUS304
Movement	molding full-height turnstile movement
Sensor	Limited sensor
Indicator Light	Dynamic indicator light
Drive Unit	Anti burn solenoid
Power Supply	24V 150W
Control Unit	Main board
Communication Interface	Dry contact & RS485
Pass rate	35-50 persons/minute
Temperature	-20℃~+70℃
Humidity	≤90% No condensation
IP	IP4X

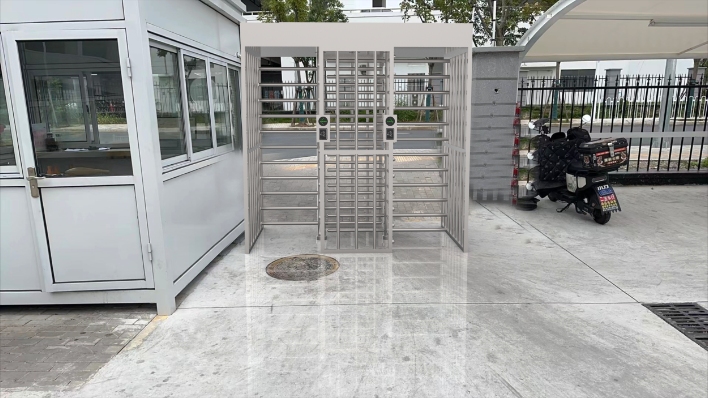

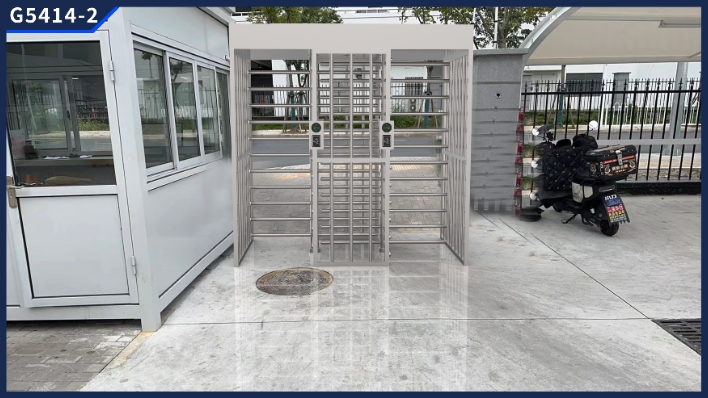

Environment	Indoor and outdoor
