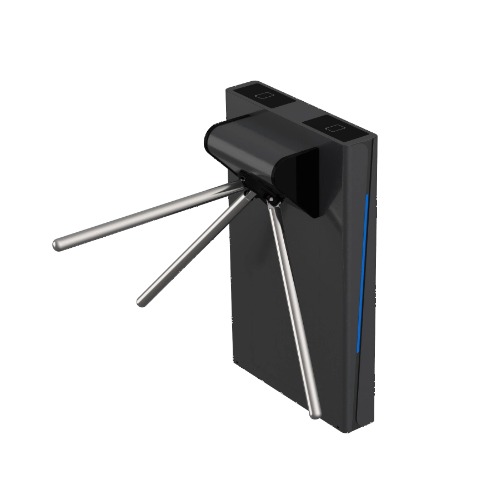

Tripod Turnstile-LA1218
Reasonable and reliable design, low noise, smooth operation and long service life; Using brushless motor, cooperating with our professional machine core, the function is more powerful. LED indicator, valid card showing green, illegal card showing red; Card can be set "with memory" or "without memory";
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life;
- Using brushless motor, cooperating with our professional machine core, the function is more powerful.
- LED indicator, valid card showing green, illegal card showing red;
- Card can be set "with memory" or "without memory";
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
- Compatible with IC, ID card, scanning and face recognition;
- With unified and standard external electrical interface to facilitate system integration;
- Extensible to realize access control, attendance, fees and other functions;
- Can be used outdoors completely, one machine can be used as a lane.
Details
 |
 |

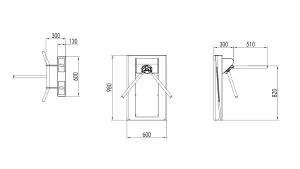

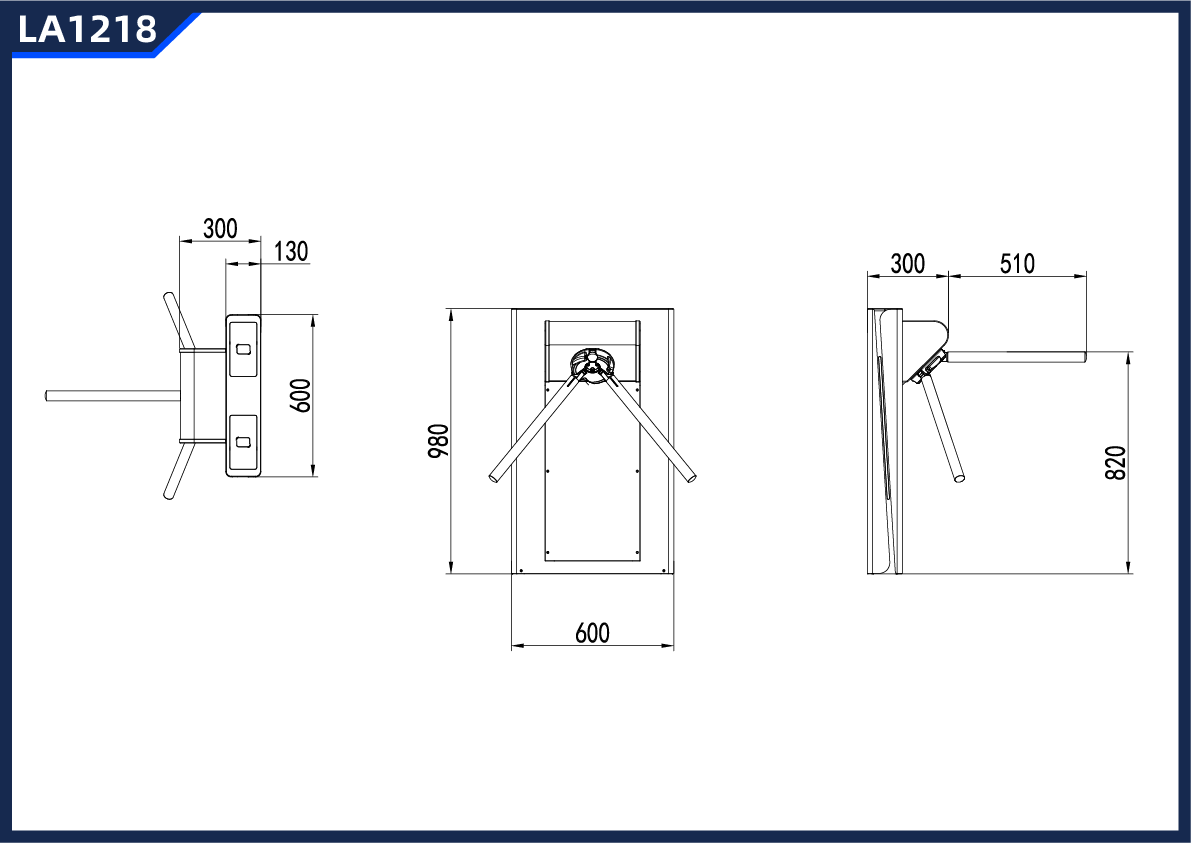

Size Drawing
 |
Parameters
| Size（L*W*H) | 600*300*980mm |
| Pass width | 550mm |
| Power | 50W |
| Material | Body 3.0mm+top cover 8.0mm aluminum alloy |
| Bar Material | Aluminum alloy |
| Movement | Semi-automatic anti-submarine back tripod turnstile (with oil pressure) |
| Indicator Light | RGB light |
| Power Supply | 24V 50W |
| Control Unit | Three roll gate standard plate |
| Communication Interface | Dry contact/RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| Humidity | IP4X |
| Environment | Indoor |
